Removal And Installation: Removal

CAUTION: Brake discs must be renewed in pairs.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  2. Refer to: BRAKE PADS - VEHICLES WITH: STANDARD BRAKES (G1073733)  (Removal And Installation).

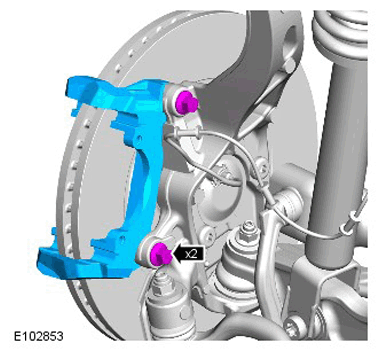

  3. G11284415

    Torque: 115 Nm

  4. G11283620
    • Remove the 2 clips.
    • Clean the components mating faces.
  5. Repeat the above procedure on the opposite side.
