Removal And Installation: Removal

CAUTION: Brake discs must be renewed in pairs.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  2. Refer to: BRAKE PADS - VEHICLES WITH: HIGH PERFORMANCE BRAKES (G1073698)  (Removal And Installation).
  3. G11511410

    Torque: 115 Nm

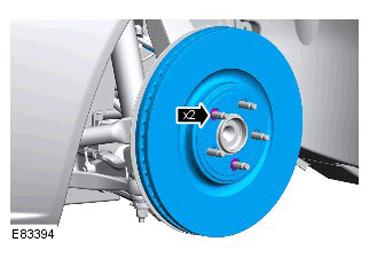

  4. G11283620
    • Remove the 2 clips.
    • Clean the components mating faces.
  5. Repeat the above procedure on the opposite side.
