Removal And Installation: Removal
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
- Remove the overhead console.
For additional information, refer to: Overhead Console

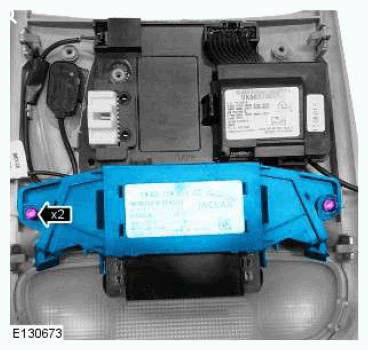

Remove the front intrusion sensor.
-
NOTE: Where installed.

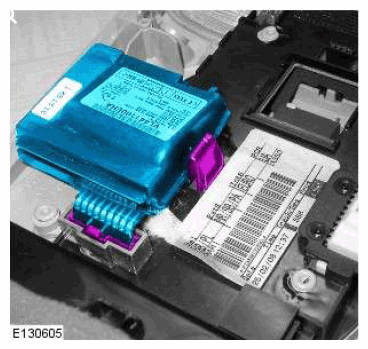

Remove the garage door opener module.

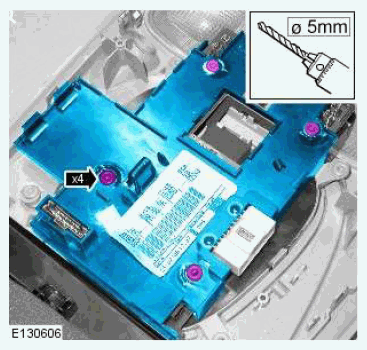

Remove the printed circuit board (PCB) cover.
- Using a 5mm drill bit, carefully drill out and remove the 4 plastic fixing heads.

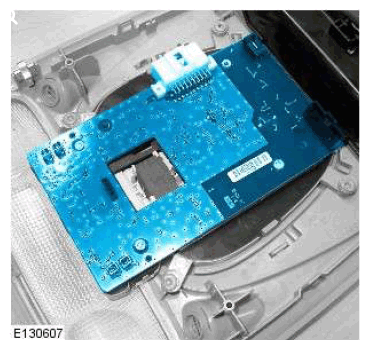

Remove the PCB.

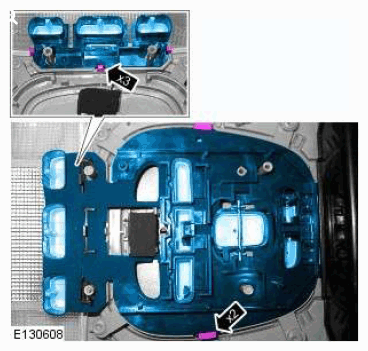

Remove the two switch mouldings.

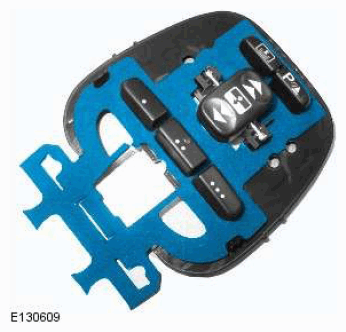

Remove the foam pad.

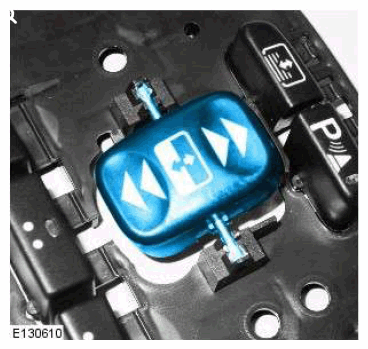

Carefully remove sunroof rocker switch for reuse in the new rear switch moulding.
NOTE:
Where installed.
CAUTION:
Make sure that only the head of the fixing is removed. Do not drill any deeper than necessary. Failure to follow this instruction may result in damage to the component.
