Removal And Installation: Installation

  1. Select the correct switch moulding for the vehicle from the parts kit.
  2. Remove any unnecessary switch buttons from the rear moulding using a suitable sharp knife. Take care not to remove any required switches.
  3. Install the sunroof rocker switch.
  4. Install the front switch moulding.
  5. Install the foam pad.
  6. Install the rear switch moulding.
  7. Install the PCB.

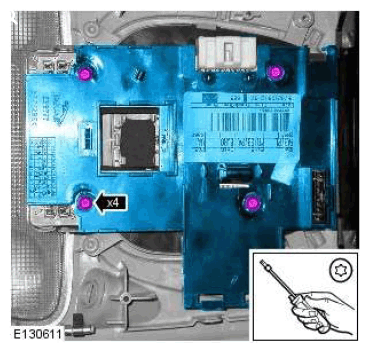

  8. G11524456

    Install the cover.

    • Install the 4 Torx screws
    • Tighten to 1.5 Nm.
  9. Install the garage door opener module.
  10. Install the front intrusion sensor.
  11. Install the overhead console.

    For additional information, refer to: Overhead Console
