Removal And Installation: Removal

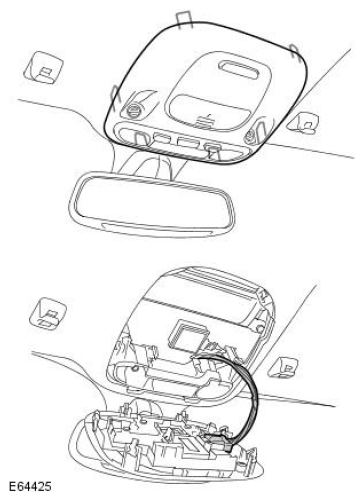

  1. G11524073

    Remove the front overhead console.

    • Release from the 6 clips.
    • Disconnect the electrical connector.
