Removal And Installation: Removal

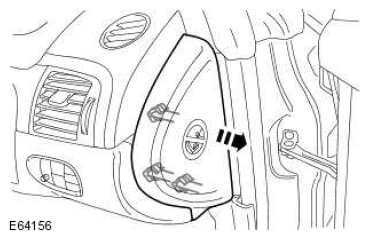

  1. G11524443

    Remove the instrument panel end trim panel.

    • Open the front door for access.
    • Carefully release the 3 clips.

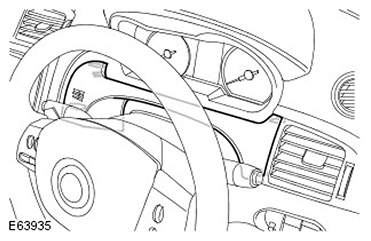

  2. G11545125

    Remove the instrument panel driver's side reinforcement trim panel.

    • Carefully release the 4 clips.
    3. CAUTION: Care must be taken to avoid damage to the mating surfaces.

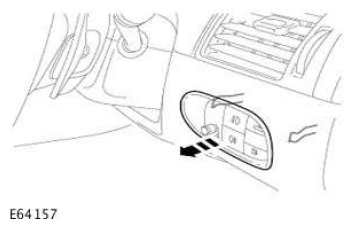

  3. G11524445

    Carefully release and remove the rheostat switch assembly.

    • Disconnect the electrical connector.
    4. CAUTION: Removal of the clips is a delicate procedure, damage will occur if any force is used.

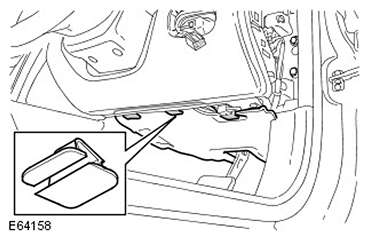

  4. G11545107

    Remove the driver's side footwell trim panel.

    • Carefully release the 3 clips.

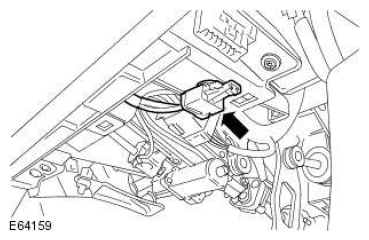

  5. G11524447

    Release the MOST diagnostic port.

    • Carefully release the clip.

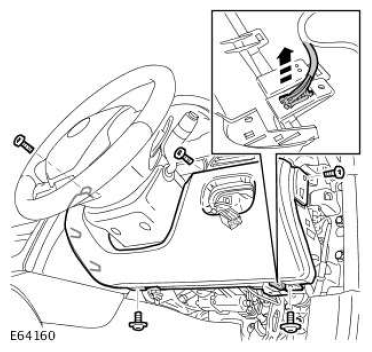

  6. G11524448

    Remove the instrument panel, lower trim panel.

    • Remove the 3 Torx bolts.
    • Remove the 2 Torx screws.
    • Release the 2 clips.
    • Release the vehicle diagnostic port.
