Removal And Installation: Removal

  1. G11524425

    Remove the instrument panel end trim panel.

    • Release the 3 clips.
    2. CAUTION: Removal of the clips is a delicate procedure, damage will occur if any force is used.

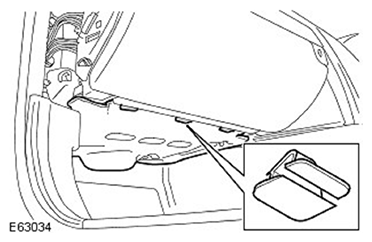

  2. G11545142

    Remove the passenger side footwell trim panel.

    • Remove the 3 clips.

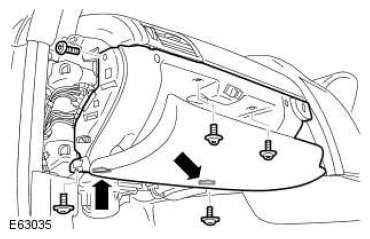

  3. G11524427

    Release the glove compartment.

    • Remove the 5 Torx screws.
    • Release the 2 clips.

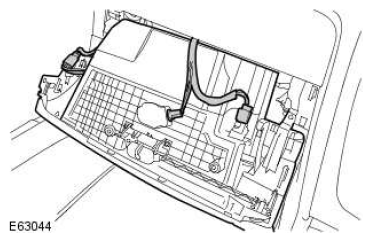

  4. G11524428

    Remove the glove compartment.

    • Disconnect the 2 electrical connectors.
    • Release the glove compartment lamp assembly.
