Home >> Jaguar >> 2014 >> XK Base, 2D Convertible >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Cluster -- XK/X150 >> Instrument Cluster >> Instrument Cluster Lens >> Removal And Installation >> Removal

Removal And Installation: Removal

  1. Fully Extend The Steering Column For Access.
  2. Disconnect The Battery Ground Cable.

    Refer To: Battery Disconnect And Connect

  3. Refer To: instrument Cluster
    4. CAUTION: To Prevent Static Damage To The Circuits, Place The Instrument Cluster Inside The Electro Static Discharge Bag And Use The Gloves Provided During This Procedure.

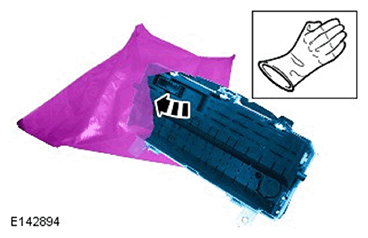

  4. G11545307

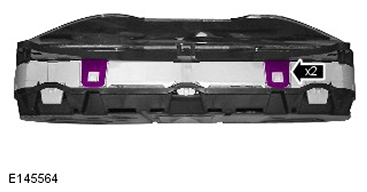

  5. G11545308

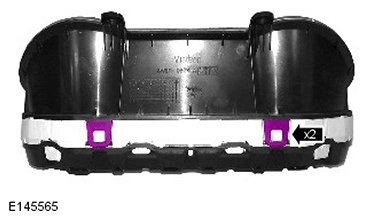

  6. G11545309
    7. CAUTION: Take Care Not To Damage The Dials.

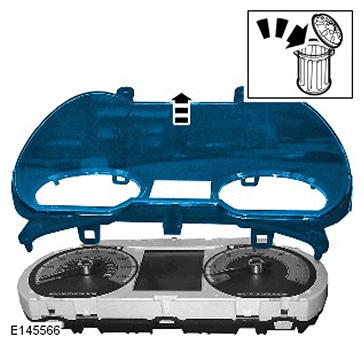

  7. G11545310
