Removal And Installation: Removal

NOTE: Make sure all smart keys are available before a new instrument cluster is installed.

If a new instrument cluster is being installed, all smart keys must be cleared from the passive anti-theft system (PATS), using the Jaguar approved diagnostic equipment prior to the instrument cluster removal.
Remove the instrument panel driver's side reinforcement trim panel.
- Carefully release the 4 clips.

CAUTION: Protect the surrounding trim from damage when changing the component.

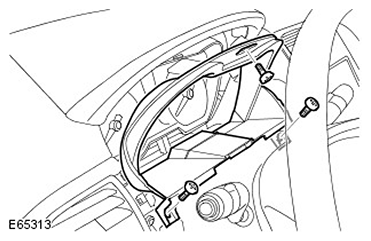

Remove the instrument cluster surround.
- Remove the 3 screws.
Remove the instrument cluster.

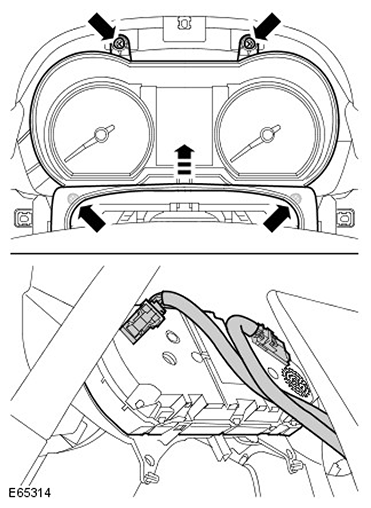

- Raise the steering column finisher for access to the lower screws.
- Remove the 4 screws.
- Disconnect the 2 electrical connectors.
