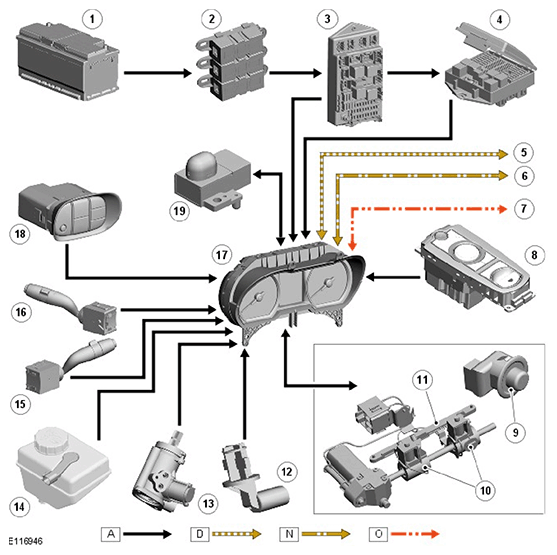

Control Diagram
NOTE:
A
= Hardwired; D
= High speed CAN bus; N
= Medium speed CAN bus; O
= LIN bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | BJB (battery junction box) (175 A megafuse) |
| 3 | CJB (central junction box) |
| 4 | Power distribution box (ignition relay) |
| 5 | High speed CAN (controller area network) bus to other vehicle systems |
| 6 | Medium speed CAN bus to other vehicle systems |
| 7 | LIN (local interconnect network) bus from steering wheel audio switch module (via clockspring) and start control module |
| 8 | JaguarDrive selector module |
| 9 | Steering column adjustment switch |
| 10 | Steering column reach and rake adjustment motors |
| 11 | Steering column position potentiometer |
| 12 | Coolant level switch |
| 13 | Power steering Servotronic valve |
| 14 | Brake fluid level switch |
| 15 | Steering column RH multifunction switch |
| 16 | Steering column LH multifunction switch |
| 17 | Instrument cluster |
| 18 | Auxiliary switch panel |
| 19 | Sunload sensor (with alarm LED (light emitting diode)) |
