Shock Absorber And Spring Assembly (G1002034): Disassembly

  1. Remove the shock absorber and spring assembly.

    For additional information, refer to Shock Absorber and Spring Assembly  in this section.

  2. WARNING: Make sure the shock absorber is secured by fully inserting the locking pin in to the special tool. Failure to follow these instructions may result in personal injury.

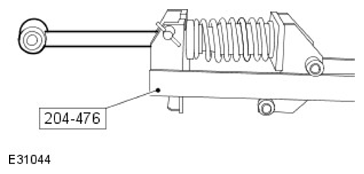

    G11589926

    Install the shock absorber and spring assembly to the special tool as shown.

  3. WARNING: AS THE SPRING IS UNDER EXTREME TENSION CARE MUST BE TAKEN AT ALL TIMES. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

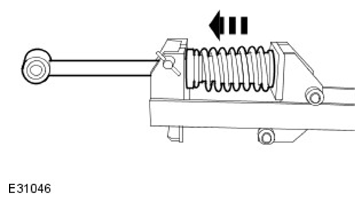

    G11589927

    Clamp the road spring.

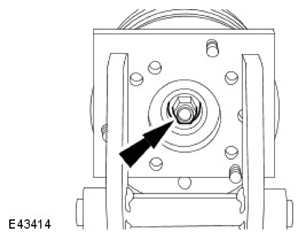

  4. G11589928

    Remove the shock absorber retaining nut.

    Remove and discard the retaining nut.

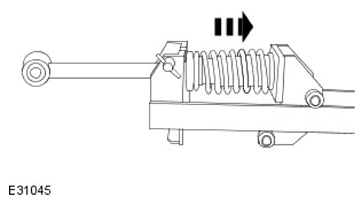

  5. G11589929

    Release the road spring.

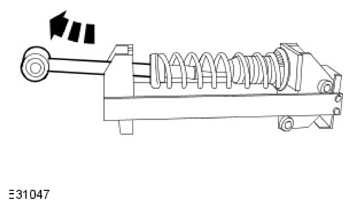

  6. G11589930

    Remove the shock absorber.
