Headlamp Adjustment (G1225247)

86.40.18 HEADLAMPS - VEHICLE SET - ALIGN BEAMS NAS 0.2
86.40.18 HEADLAMPS - VEHICLE SET - ALIGN BEAMS NON NAS 0.2
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Make sure to check and adjust the tyre pressures to the correct level.

    Park the vehicle on a horizontally level surface.

  2. Align the headlamp beam setting equipment to one headlamp. Headlamp beam setter
  3. NOTE: The headlamp setting is 1 % below horizontal and parallel.

    Check the headlamp beam alignment.

  4. Open the hood.

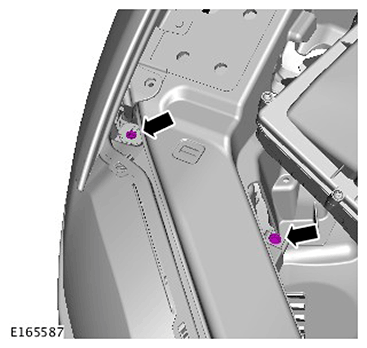

  5. G11422292

    Adjust the headlamps with an Allen Key.

  6. To adjust the second headlamp, repeat the above procedure.
