Fuel Rail (G1574611): Installation

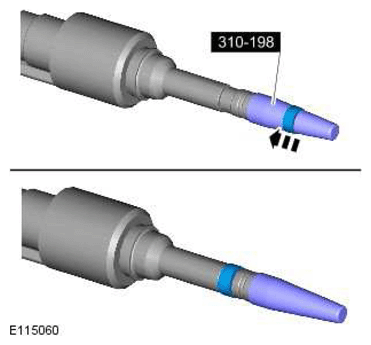

Special Tool(s): 310-198

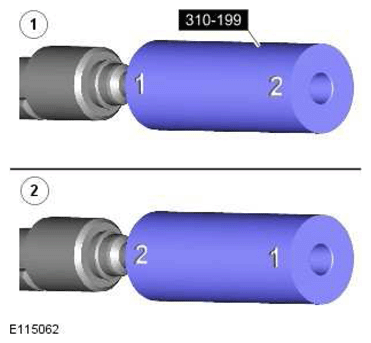

Special Tool(s): 310-199

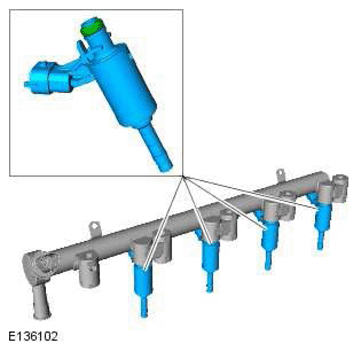

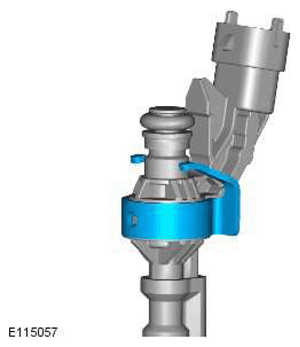

CAUTION: If the original fuel injector is being installed, the original fuel injector clamp must be installed with the fuel injector it was removed with.
CAUTION:

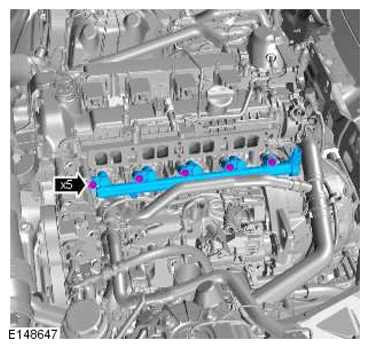

- Carefully install the fuel injector and fuel rail assembly.
- Only tighten the bolts finger-tight at this stage.

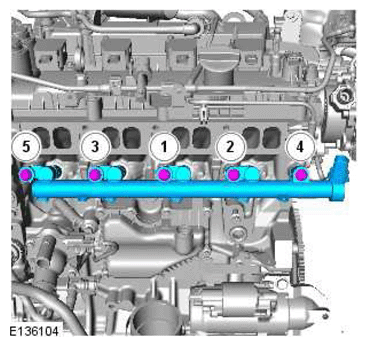

1. Tighten the bolt in the sequence shown.
  Torque Specification: 10 Nm
2. Loosen, but do not remove the bolts.
3. Tighten the bolt in the sequence shown.
  Torque Specifications:

  Stage 1: 7 Nm

  Stage 2: 26°

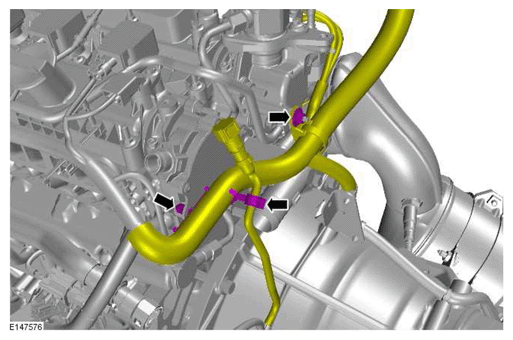

CAUTION: Make sure that the components are installed to the noted position in the removal steps.
CAUTION: Tighten the component finger tight first.

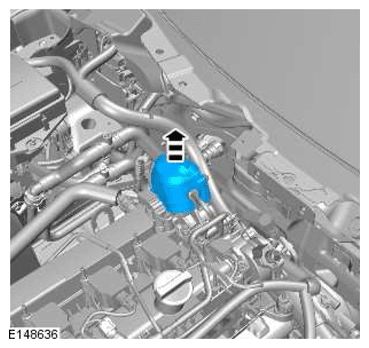

NOTE: Remove and discard all blanking caps.

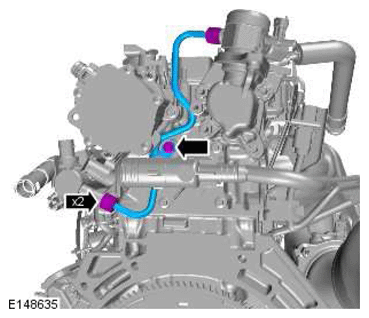

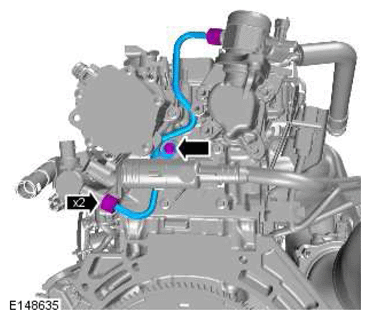

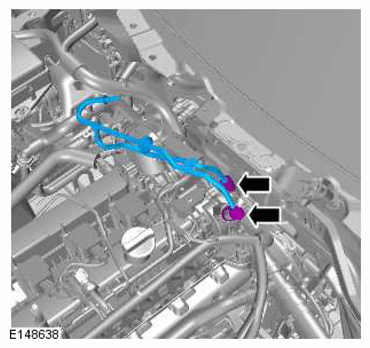

1. Torque Specification:
  Bolt 10 Nm
2. Torque Specification:
  Unions 30 Nm

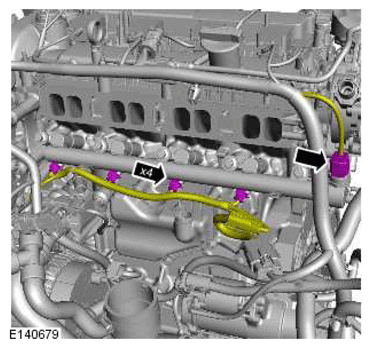

Torque Specification: 8 Nm

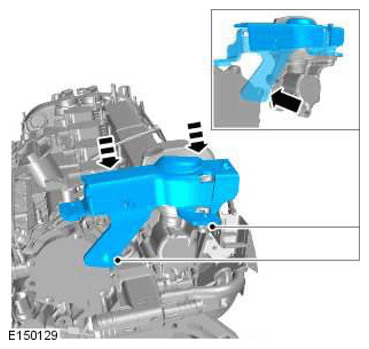

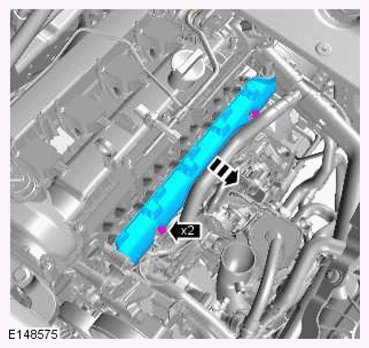

NOTE: Make sure that the component is correctly located.
NOTE: Install the the bolts finger tight first.

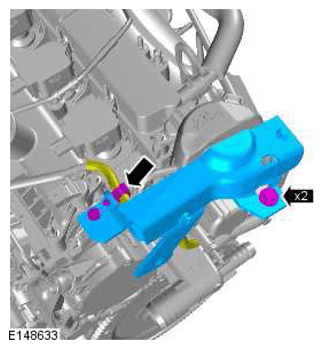

Torque Specifications:

M8 25 Nm

M6 11 Nm
Refer to: Intake Manifold (Installation).
Refer to: Battery Disconnect and Connect (General Procedures).
