Turbocharger (G1550179): Removal
WARNING:
Observe due care when working near a hot exhaust system.
CAUTION:
Make sure that all openings are sealed. Use new blanking caps.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Removal steps in this procedure may contain installation details.
- Refer to: Engine Cover - GTDi 2.0L Petrol (501-05 Interior Trim and Ornamentation, Removal and Installation).
- Refer to: Cooling System Partial Draining and Vacuum Filling (303-03C Engine Cooling - V6 S/C 3.0L Petrol, General Procedures).
- Refer to: Catalytic Converter (309-00C Exhaust System - GTDi 2.0L Petrol, Removal and Installation).

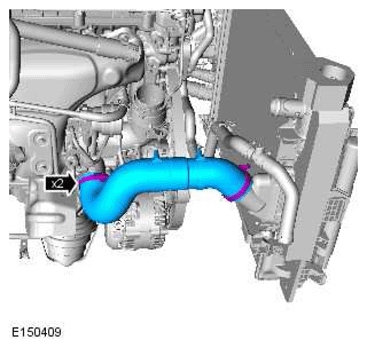

- Refer to: Air Cleaner Outlet Pipe (303-12C Intake Air Distribution and Filtering - GTDi 2.0L Petrol, Removal and Installation).

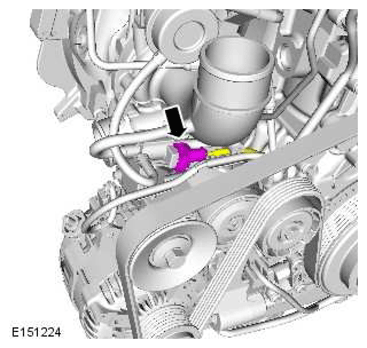

Torque Specification: 4.5 Nm
-

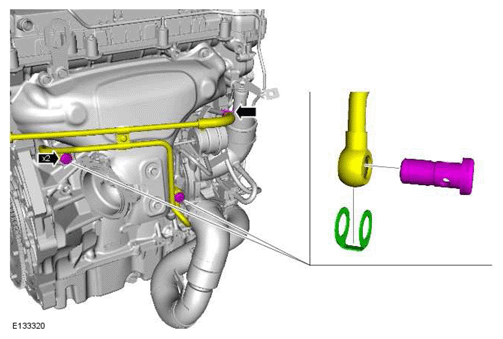

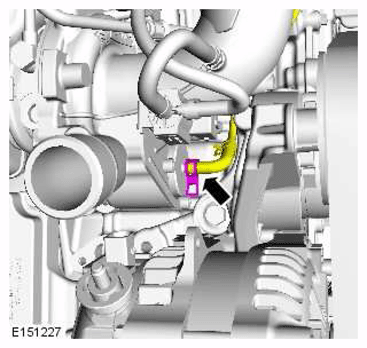

CAUTION:
- Be prepared to collect escaping coolant.
- Make sure that new sealing washers are installed.
Torque Specification: 28 Nm

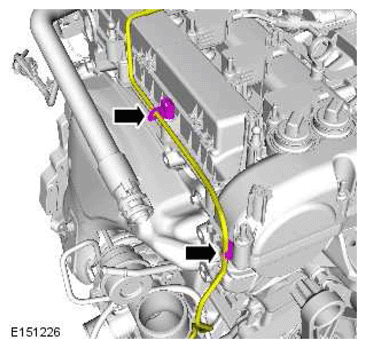

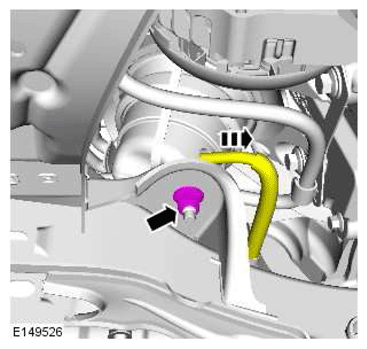

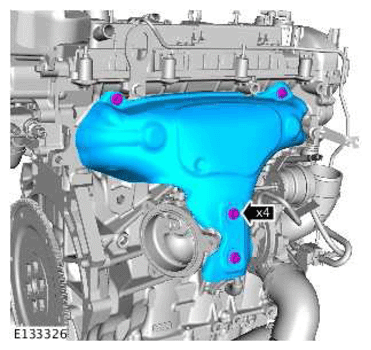

Torque Specification: 10 Nm

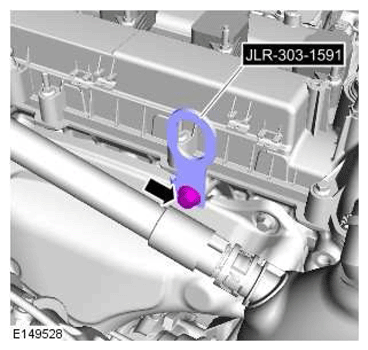

Install the special tool.
Special Tool(s): JLR-303-1591

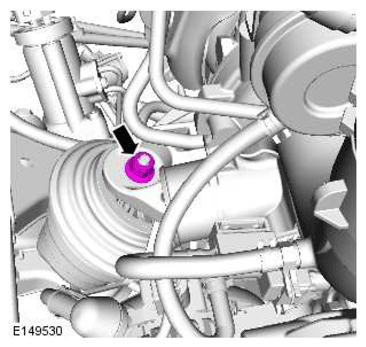

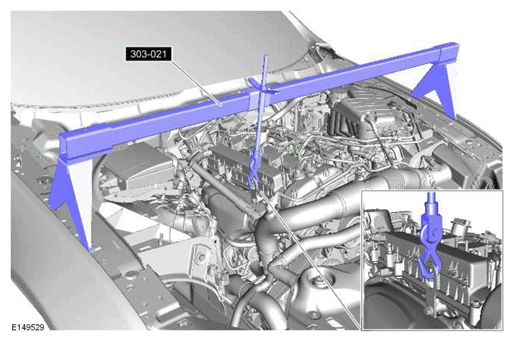

Install the engine support.
Special Tool(s): 303-021

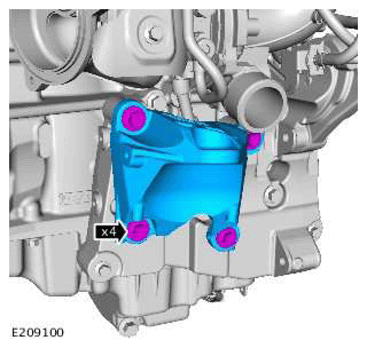

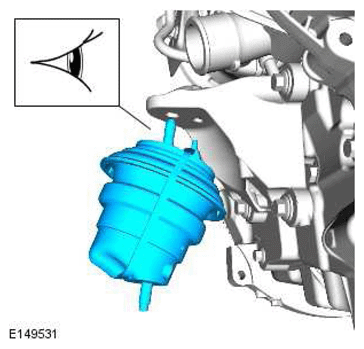

Torque Specification: 48 Nm
Torque Specification: 48 Nm
- Refer to: Generator (414-02C Generator and Regulator - GTDi 2.0L Petrol, Removal and Installation).
-
CAUTION: Be prepared to collect escaping fluids.

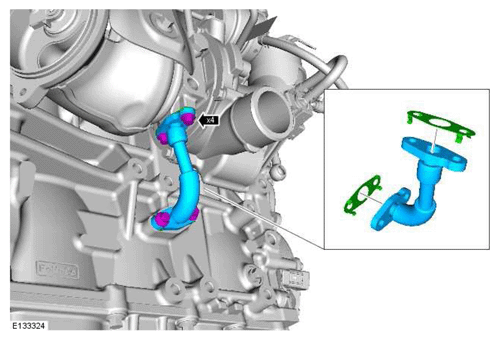

- Remove the turbocharger oil drain pipe.
- Remove and discard the turbocharger oil drain pipe gaskets.
-

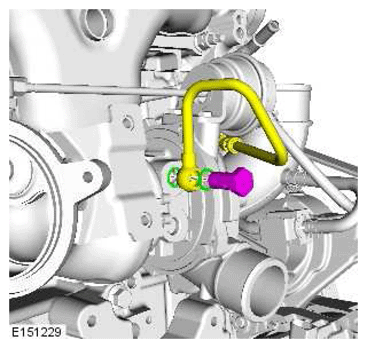

CAUTION:
- Be prepared to collect escaping oil.
- Make sure that new sealing washers are installed.
Torque Specification: 20 Nm
-

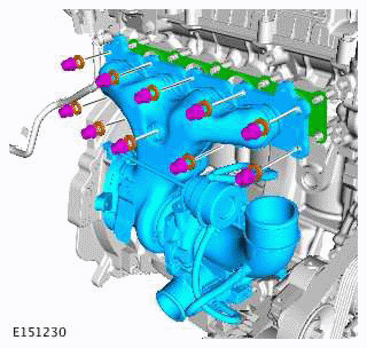

NOTE: Install a new gasket.
