Turbocharger (G1550179): Installation

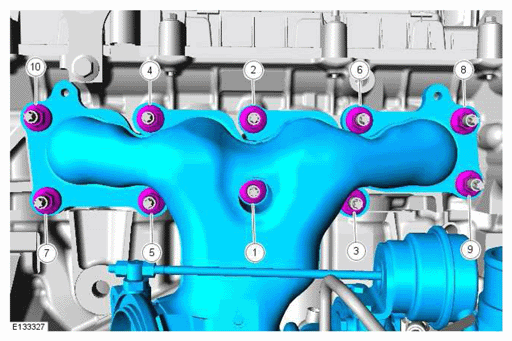

  1. CAUTION: Tighten the bolts in the sequence shown.
    Fig 1: Exhaust Manifold Mounting Flange Bolts Tightening Sequence
    G11419521Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque Specification: 50 Nm

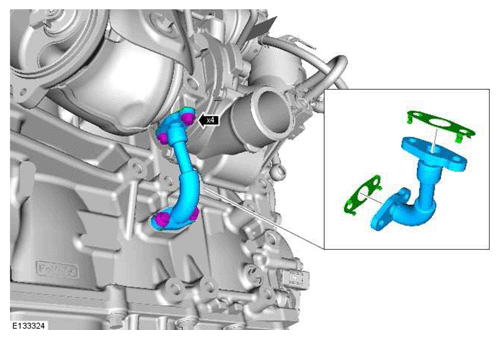

  2. CAUTION: Make sure that the gasket is correctly located.
    G11419522

    Install a new Turbocharger oil drain pipe gaskets.

    Torque Specification: 10 Nm

  3. To install, reverse the removal procedure.
