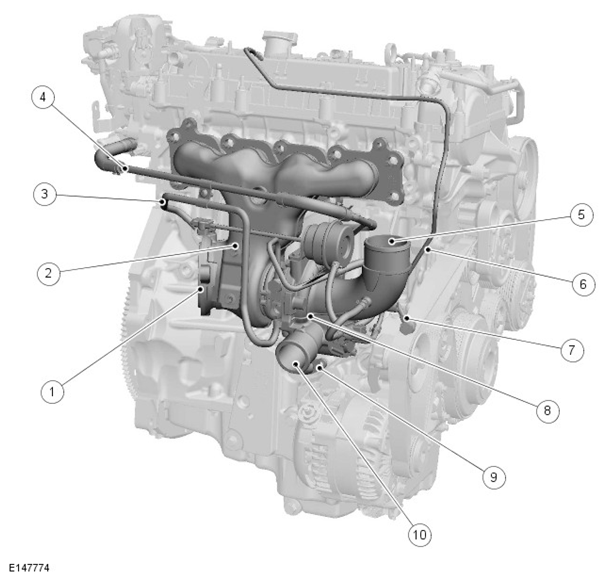

Component Location
| ITEM | DESCRIPTION |
|---|---|
| 1 | Exhaust system mounting flange |
| 2 | Exhaust manifold |
| 3 | Engine coolant inlet pipe |
| 4 | Engine coolant outlet pipe |
| 5 | Cool atmospheric air inlet from air filter |
| 6 | Vacuum pipe from inlet manifold |
| 7 | Engine oil pressure supply |
| 8 | Turbocharger |
| 9 | Engine oil return |
| 10 | Hot compressed air outlet to charge air cooler |
