Rear Stabilizer Bar (G1002030): Installation

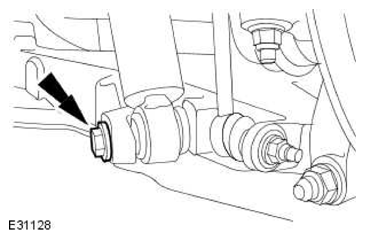

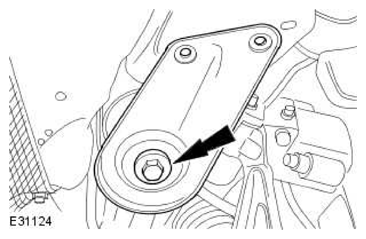

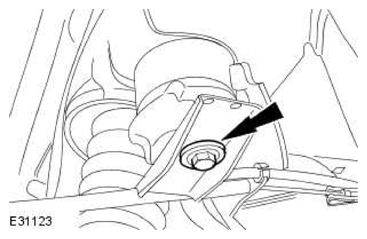

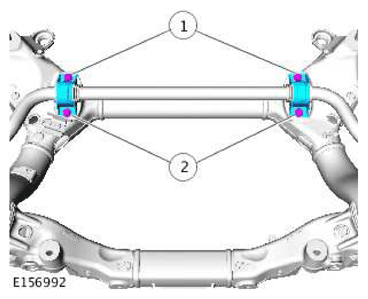

During installation tighten the bolts in the following sequence.

• Bolt 1: 55 Nm.
• Bolt 2: 55 Nm.
• Bolt 1: 55 Nm.

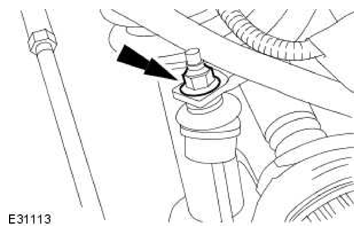

Install new nuts to the stabilizer bar links.

• Tighten to 48 Nm.

Install the rear subframe.

Loosely install the rear subframe front bolt.

Loosely install the rear subframe rear bolt.

Loosely install the rear subframe reinforcement plate bolts.

Tighten the subframe bolts.

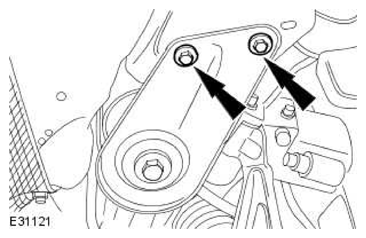

• Tighten to 80 Nm + 240°.

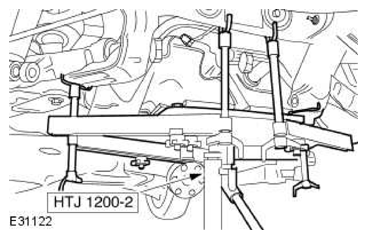

Remove the special tool.

Tighten the rear subframe reinforcement plate retaining bolts.

• Tighten to 47 Nm.

Install the shock absorber.

• Tighten to 133 Nm.

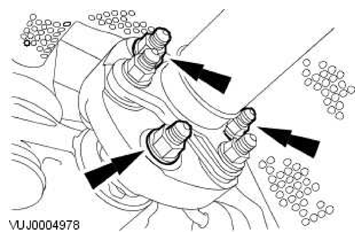

Attach the driveshaft to the rear drive axle flange.

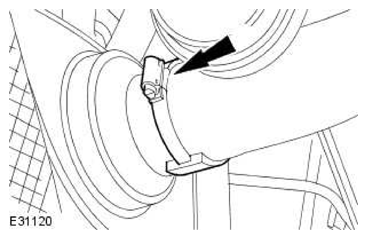

Attach the fuel filler hose to the fuel tank.

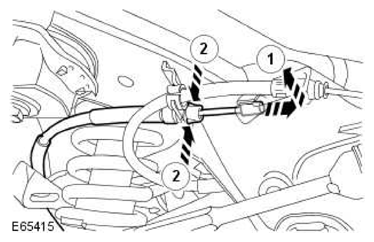

Connect both park brake cables to the rear brake calipers.

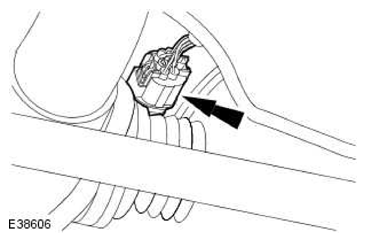

Connect the parking brake actuator electrical connector.

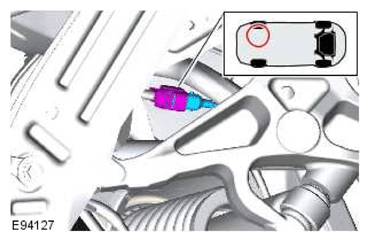

Connect the wheel speed sensor electrical connector.

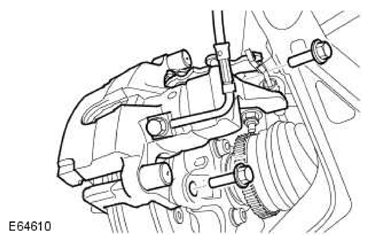

Install the brake caliper.

• Tighten the bolts to 103 Nm.

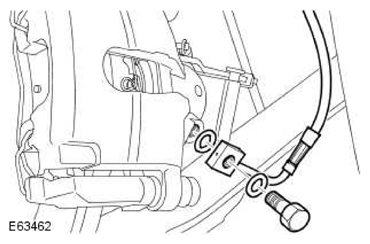

Connect the brake hose to the brake caliper.

• Install new sealing washers.
• Tighten the union to 38 Nm.
