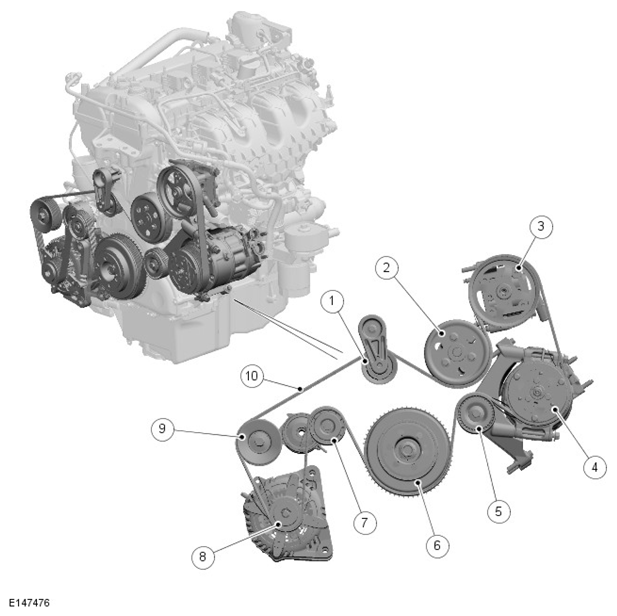

Component Location
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM |
DESCRIPTION |
| 1 |
Idler pulley |
| 2 |
Coolant pump pulley |
| 3 |
Power steering pump pulley |
| 4 |
Air Conditioning (A/C) compressor pulley |
| 5 |
Idler pulley |
| 6 |
Crankshaft pulley |
| 7 |
Belt tensioner |
| 8 |
Generator pulley |
| 9 |
Idler pulley |
| 10 |
Primary drive belt |
