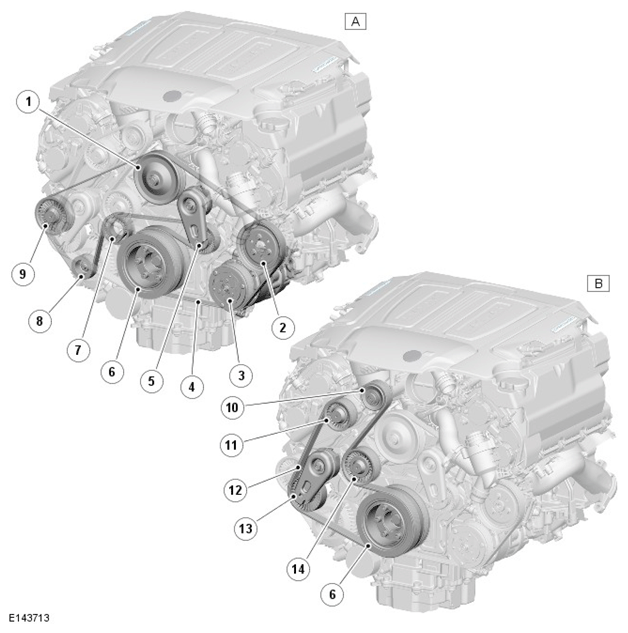

Component Location
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| A | Primary accessory drive |
| B | Secondary accessory drive |
| 1 | Coolant pump |
| 2 | Power steering pump |
| 3 | Air Conditioning (A/C) compressor |
| 4 | Primary drive belt |
| 5 | Belt tensioner |
| 6 | Crankshaft pulley/vibration damper assembly |
| 7 | Idler pulley |
| 8 | Generator |
| 9 | Idler pulley |
| 10 | Supercharger drive pulley |
| 11 | Idler pulley |
| 12 | Secondary drive belt |
| 13 | Belt tensioner |
| 14 | Idler pulley |
