Transmission - V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (G1571839): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the transmission removed for clarity.
  • Make sure that all openings are sealed. Use new blanking caps.
  1. Refer to Battery Disconnect and Connect (General Procedures).

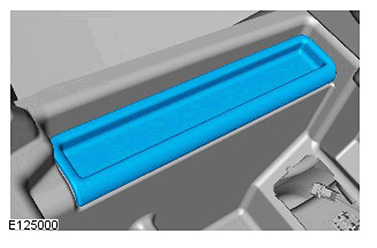

  2. G11417410

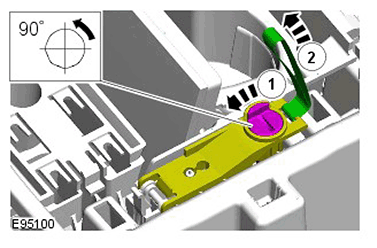

  3. G11417411
  4. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  5. Refer to Engine Cover - V6 S/C 3.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).
  6. Refer to Cowl Vent Screen (Front End Body Panels, Removal and Installation).

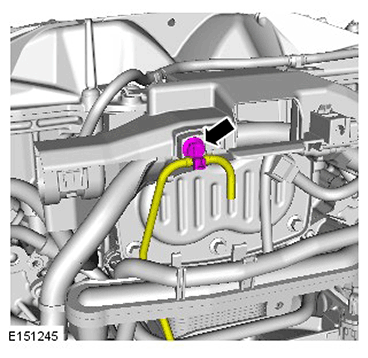

  7. G11417412

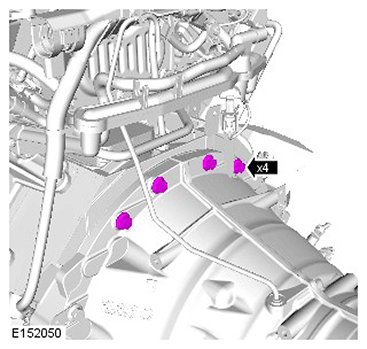

  8. G11417413

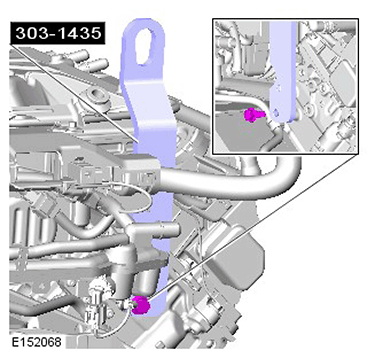

  9. G11417414

    Special Tool(s):  303-1435

    Torque Specification: 25 Nm

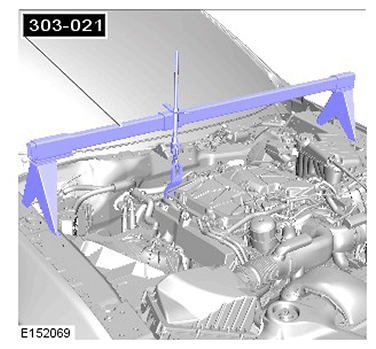

  10. G11417415

    Special Tool(s):  303-021

  11. Refer to Exhaust System - RWD (V6 S/C 3.0L Petrol, Removal and Installation).

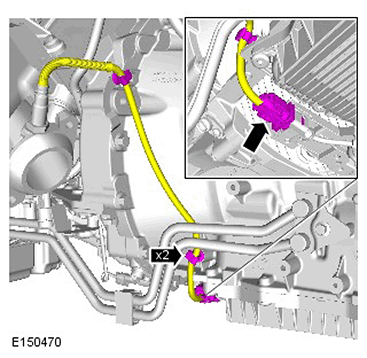

  12. G11417416

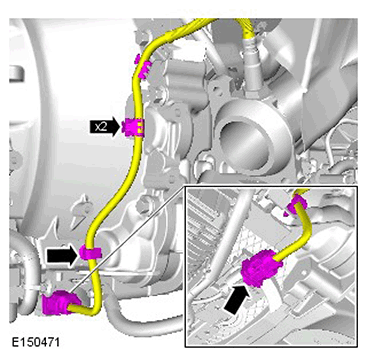

  13. G11417417

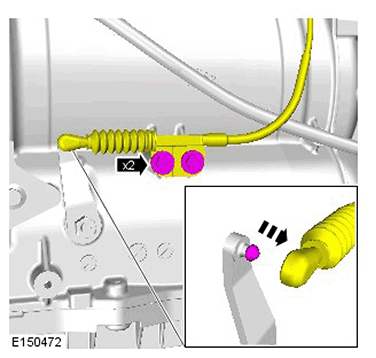

  14. G11417418

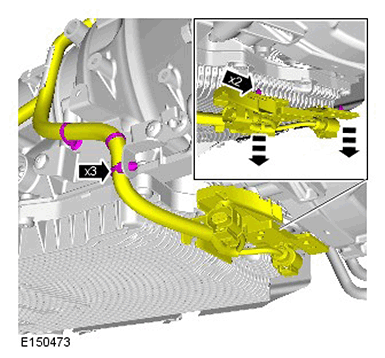

  15. G11417419

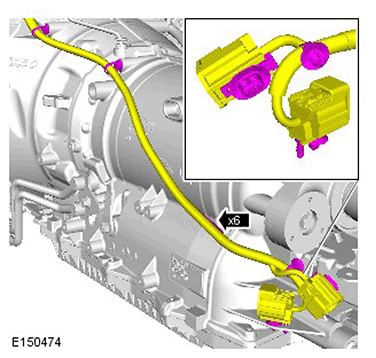

  16. G11417420

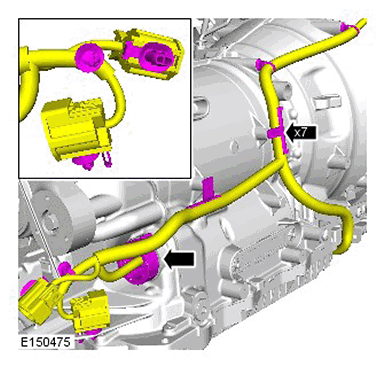

  17. G11417421

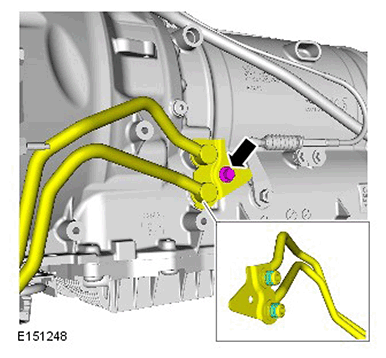

  18. CAUTION: Be prepared to collect escaping fluids.
    NOTE: The O-ring seals are to be reused unless damaged.
    G11417422

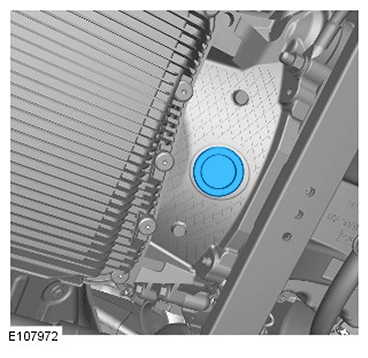

  19. G11417423

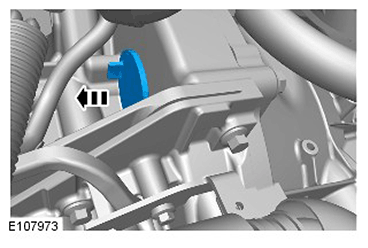

  20. G11417424

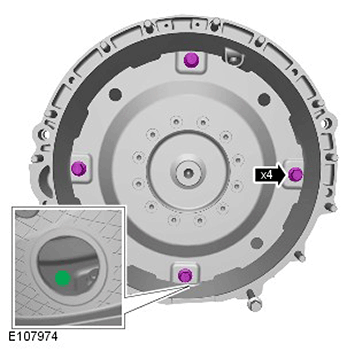

  21. CAUTION: Only rotate the crankshaft clockwise.
    G11417425
    • Mark the torque converter and flexplate when removing the last torque converter bolt. Make sure that the alignment mark is visible through the inspection hole.

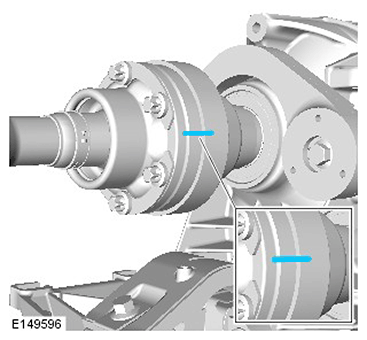

  22. NOTE: Mark the position of the driveshaft on the transmission flange.
    G11417426

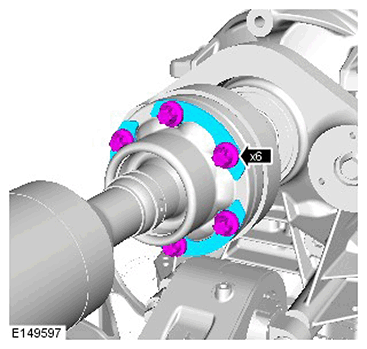

  23. CAUTION: Discard the bolts.
    G11417427

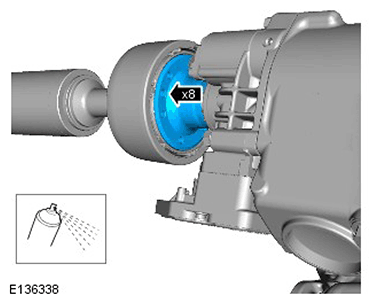

  24. NOTE: Use penetrating oil - spray through the driveshaft bolt holes as shown.
    G11417428

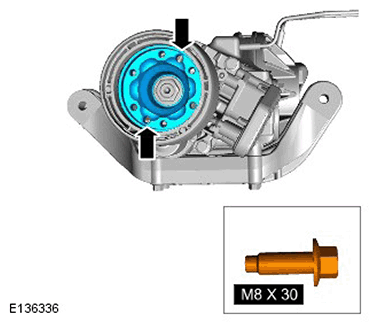

  25. NOTE: Driveshaft joint shown removed for clarity.
    G11417429
  26. NOTE:
    • Two washers must be installed to the assist in the removal of the driveshaft.
    • Alternate tighten the bolts until the movement of the driveshaft joint is detected.
    G11417430

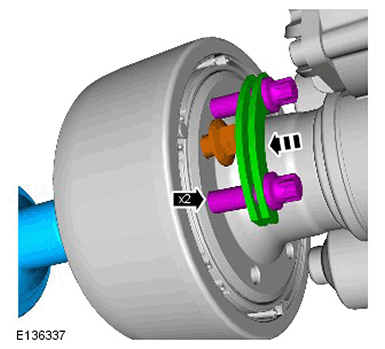

  27. NOTE: Repeat above steps until the driveshaft joint is fully released.
    G11417431

    Remove the bolts, turn the propshaft and repeat the above step at the other unthreaded hole.

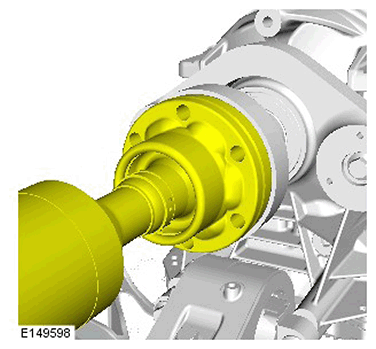

  28. CAUTION: Make sure that the driveshaft is supported with suitable retaining straps.
    G11417432

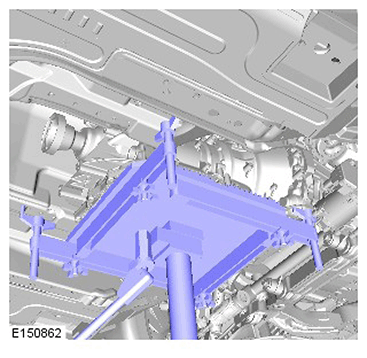

  29. WARNING: Make sure that the transmission is secured with suitable retaining straps.
    G11417433

    Using a suitable stand, support the transmission.

    General Equipment:  Transmission jack

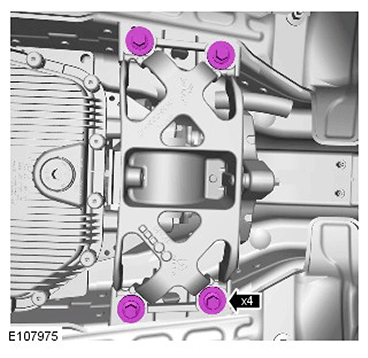

  30. G11417434

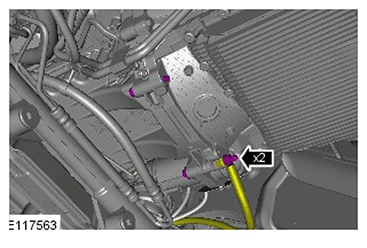

  31. G11417435

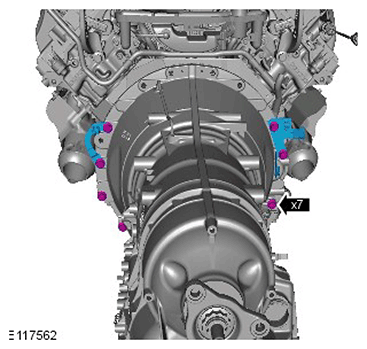

  32. G11417436

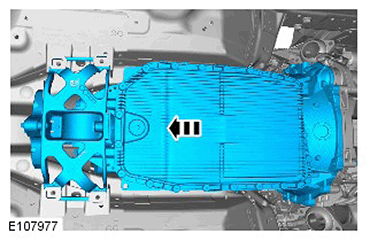

  33. WARNING:
    • This step requires the aid of another technician.
    • Make sure that the transmission is secured with suitable retaining straps.
    CAUTION:
    • Care must be taken to avoid damaging the surrounding components.
    • Make sure that the torque converter remains in the transmission.
    NOTE: Secure the torque converter to the transmission using suitable cable ties.
    G11417437

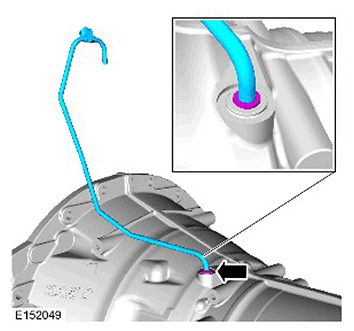

  34. G11417438

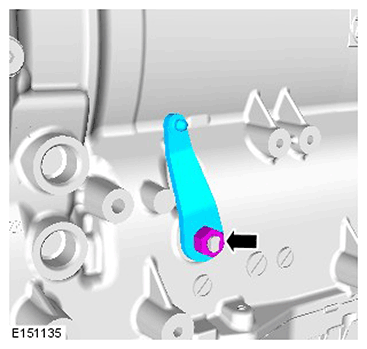

  35. NOTE: Do not disassemble further if the component is removed for access only.
    G11417439

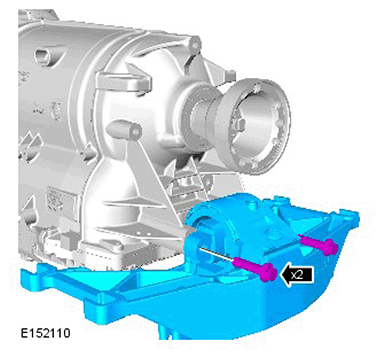

  36. G11417440
