Transmission - GTDI 2.0L Petrol (G1571838): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the transmission removed for clarity.
  • Make sure that all openings are sealed. Use new blanking caps.
  1. Refer to Battery Disconnect and Connect (General Procedures).
  2. Refer to Engine Cover - GTDi 2.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).
  3. Refer to Exhaust System (GTDi 2.0L Petrol, Removal and Installation).
  4. Refer to Starter Motor (GTDi 2.0L Petrol, Removal and Installation).

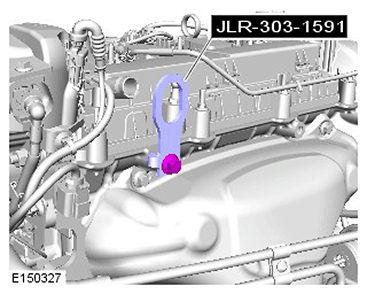

  5. G11417364

    Special Tool(s):  JLR-303-1591

    Torque Specification: 24 Nm

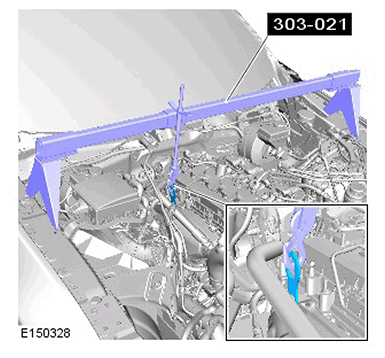

  6. G11417365

    Special Tool(s):  303-021

  7. G11417366

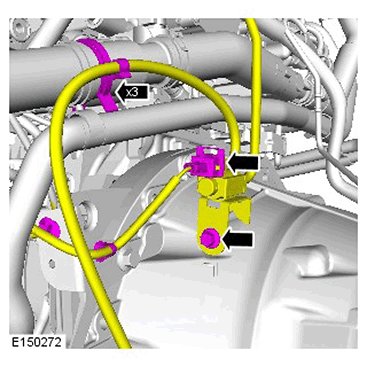

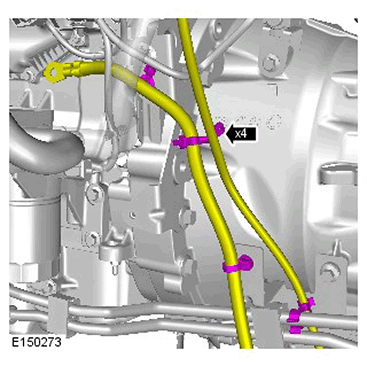

  8. G11417367

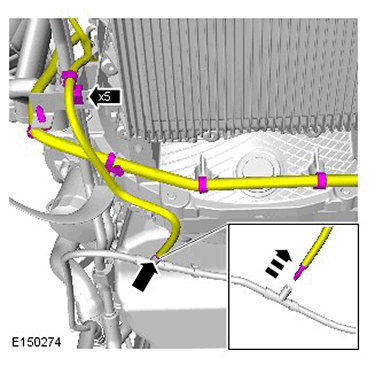

  9. G11417368

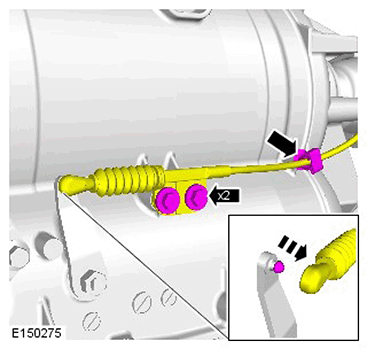

  10. NOTE: Discard the retaining clips.
    G11417369

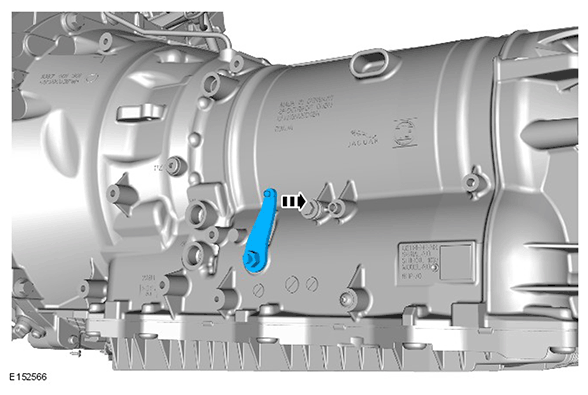

  11. CAUTION: Secure with a cable tie.
    G11417370

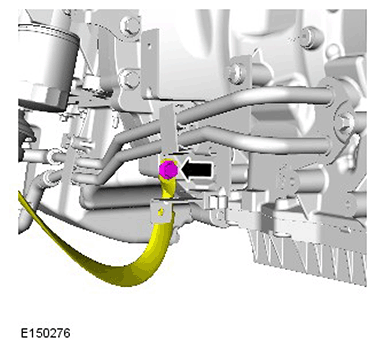

  12. G11417371
  13. WARNING: Be prepared to collect escaping fluids.
    NOTE: The O-ring seals are to be reused unless damaged.

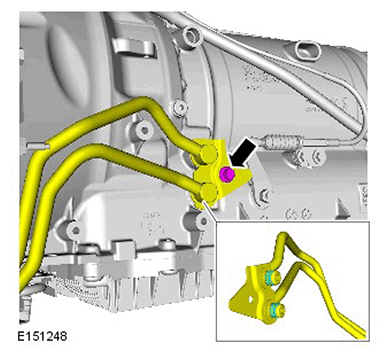

    G11417372

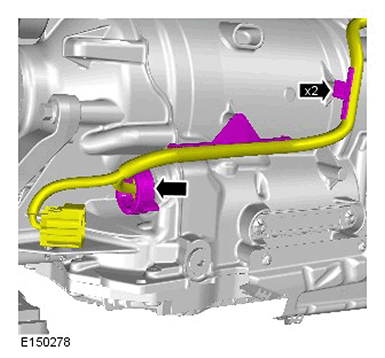

  14. G11417373

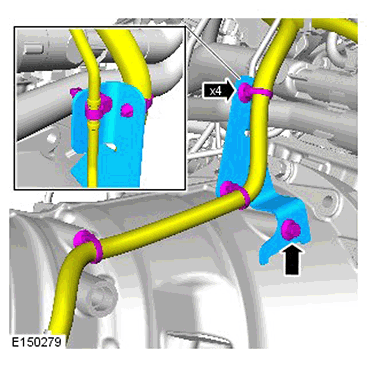

  15. G11417374

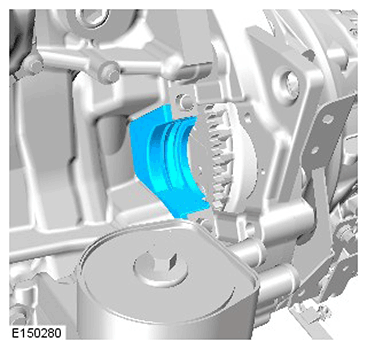

  16. G11417375
  17. CAUTION: Only rotate the crankshaft clockwise.

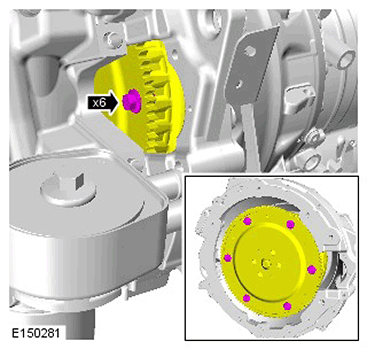

    G11417376

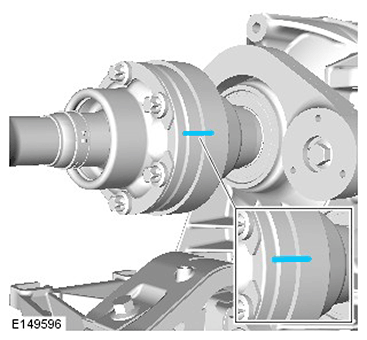

  18. NOTE: Mark the position of the driveshaft on the transmission flange.
    G11417377
  19. CAUTION: Discard the bolts.

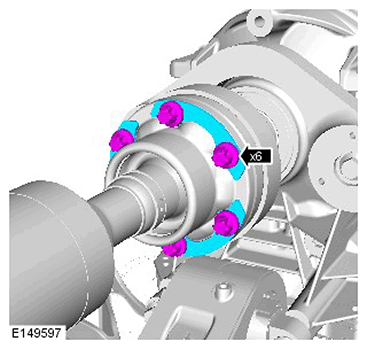

    G11417378

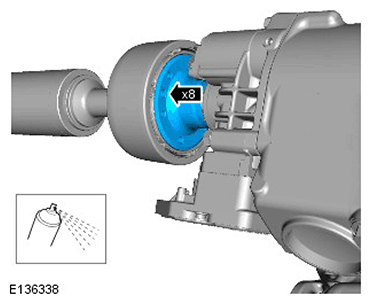

  20. NOTE: Use penetrating oil - spray through the driveshaft bolt holes as shown.
    G11417379
  21. NOTE: Driveshaft joint shown removed for clarity.

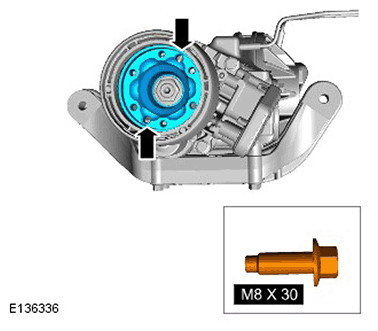

    G11417380
  22. NOTE:
    • Two washers must be installed to the assist in the removal of the driveshaft.
    • Alternate tighten the bolts until the movement of the driveshaft joint is detected.

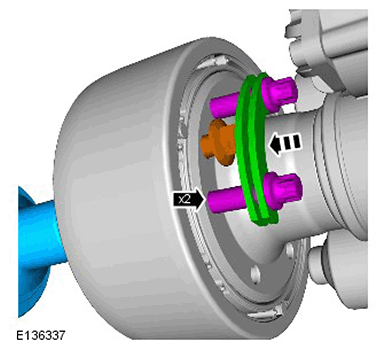

    G11417381
  23. NOTE: Repeat above steps until the driveshaft joint is fully released.
    G11417382

    Remove the bolts, turn the propshaft and repeat the above step at the other unthreaded hole.

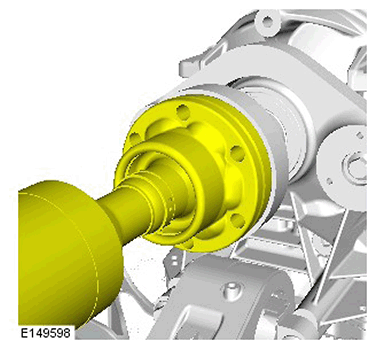

  24. CAUTION: Make sure that the driveshaft is supported with suitable retaining straps.
    G11417383

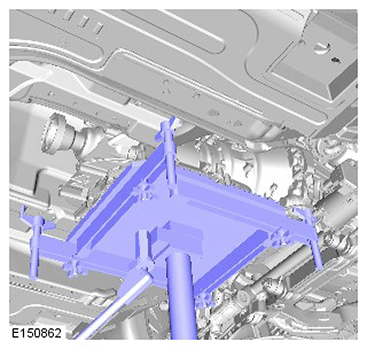

  25. WARNING: Make sure that the transmission is secured with suitable retaining straps.
    G11417384

    Using a suitable stand, support the transmission.

    General Equipment:  Transmission jack

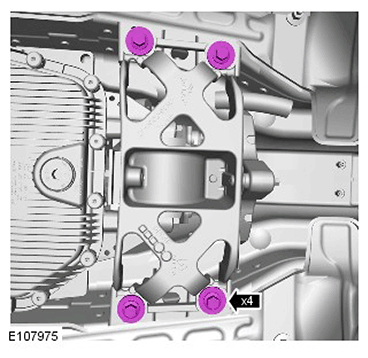

  26. G11417385

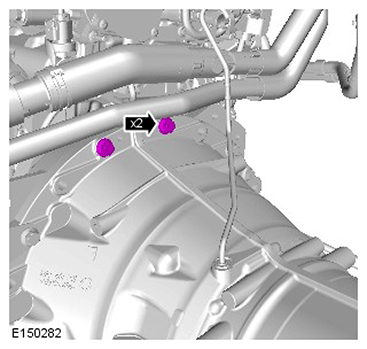

  27. G11417386

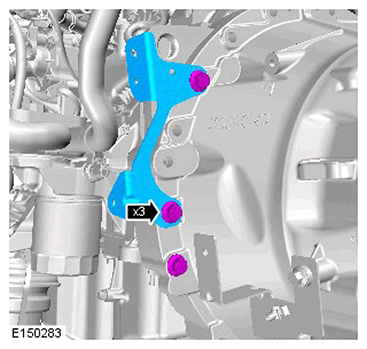

  28. G11417387

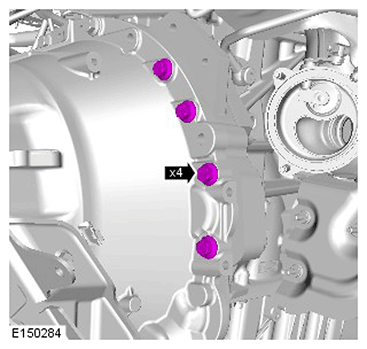

  29. G11417388

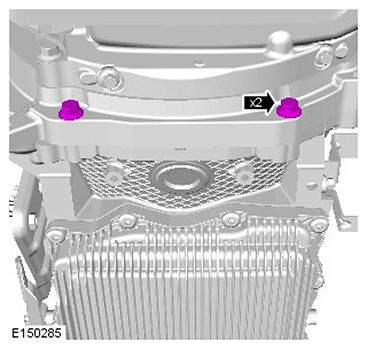

  30. G11417389
  31. WARNING: This step requires the aid of another technician.
    CAUTION:
    • Care must be taken to avoid damaging the surrounding components.
    • Make sure that the torque converter remains in the transmission.
    NOTE: Secure the torque converter to the transmission using suitable cable ties.

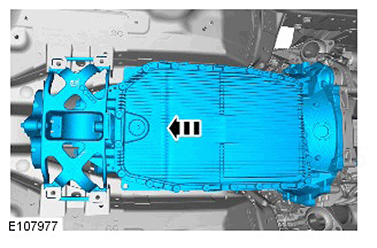

    G11417390

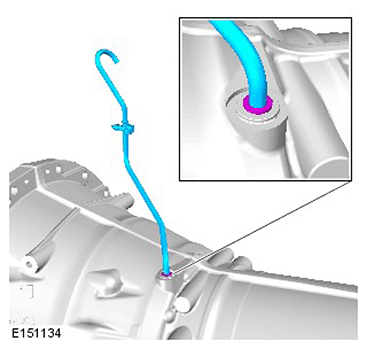

  32. CAUTION: Discard the component.
    G11417391
  33. NOTE: Do not disassemble further if the component is removed for access only.

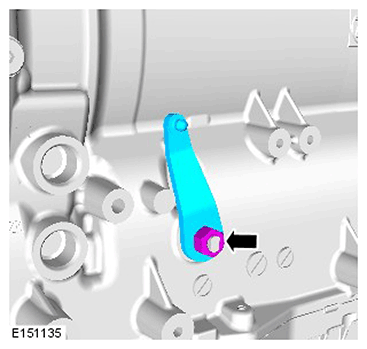

    G11417392

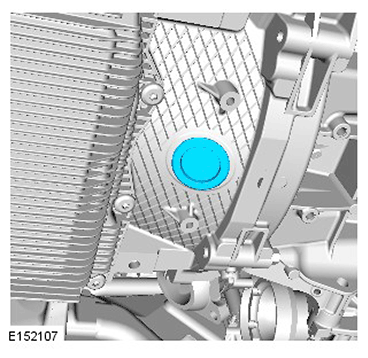

  34. G11417393

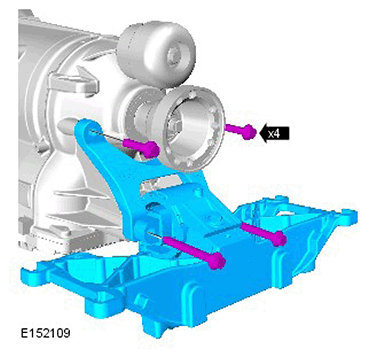

  35. G11417394
