Transmission - GTDI 2.0L Petrol (G1571838): Notes

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, GTDI 4.4
G11417349
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2200 CC, TD4 4.6
G11417350
44.20.01 TRANSMISSION ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 2WD 5.3
G11417351
44.20.01 TRANSMISSION ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 4WD 6.2
G11417352

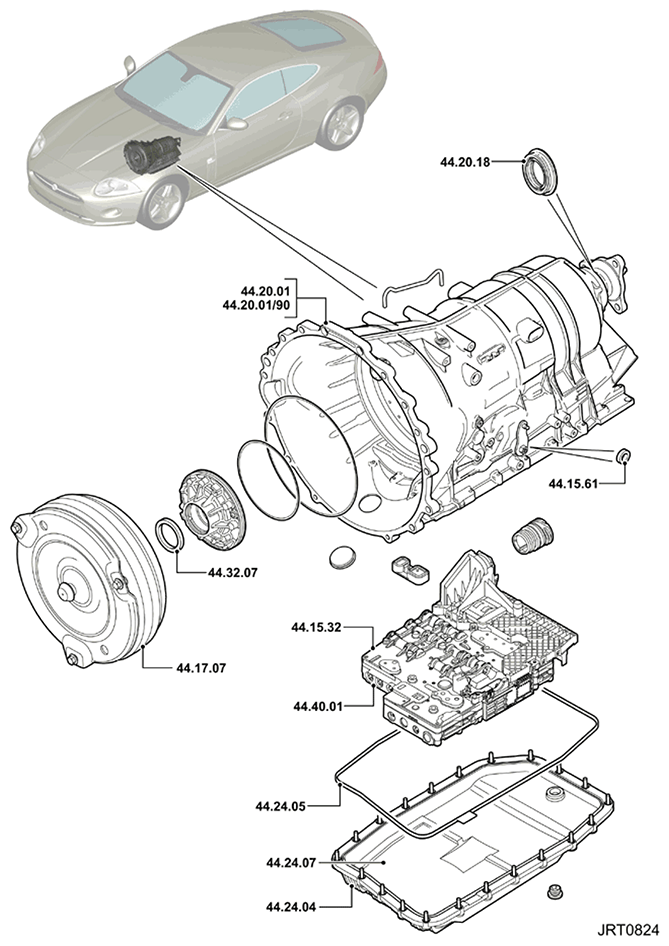

44.20.01 TRANSMISSION ASSEMBLY - RENEW 3000 CC, TDV6 5.8
G11417353
44.20.01 TRANSMISSION ASSEMBLY - RENEW 5000 CC, AJ V8 3.9
G11417354
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, GTDI 3.7
G11417355
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2200 CC, TD4 4
G11417356
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 2WD 4.4
G11417357
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 4WD 5.1
G11417358
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 3000 CC, TDV6 5.5
G11417359
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 5000 CC, AJ V8 3.4
G11417360

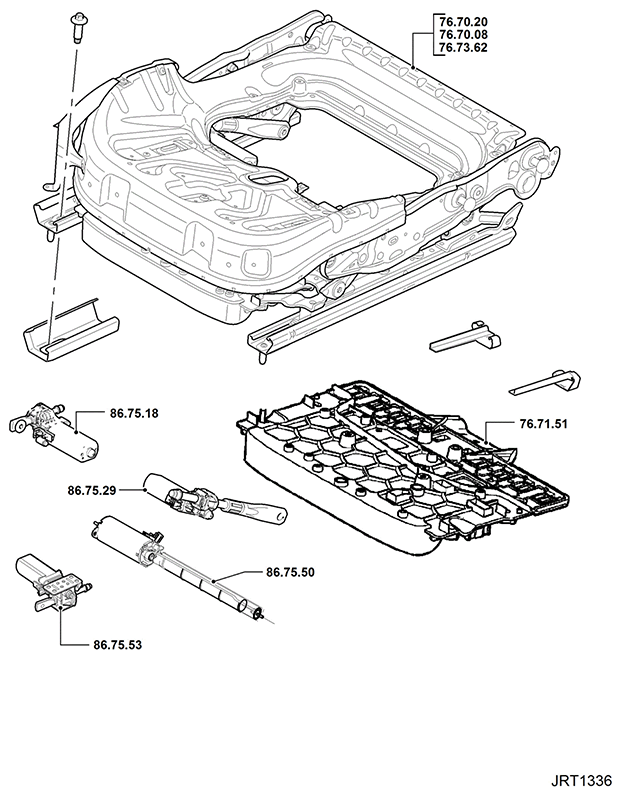

86.75.50 FRONT SEAT TRACK MOTOR - RENEW ALL DERIVATIVES 0.4
G11417361
