Input Shaft Seal - GTDI 2.0L Petrol//V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (G1450191): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Disconnect the battery ground cable.
Refer to Battery Disconnect and Connect .
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to TRANSMISSION - GTDI 2.0L PETROL (G1571838) (Removal).
Refer to TRANSMISSION - V6 S/C 3.0L PETROL/V8 S/C 5.0L PETROL (G1571839) (Removal).
CAUTION: Be prepared to collect escaping fluids.

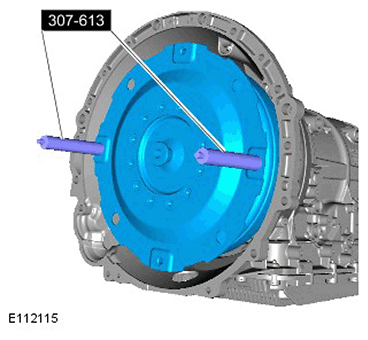

Special Tool(s): 307-613
CAUTION:
- Discard the seal.
- Care must be taken to avoid damage to the seal register and running surface.

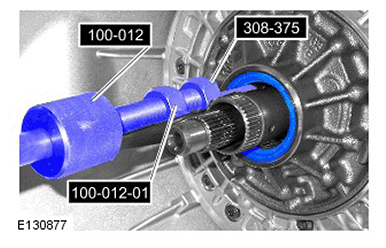

Special Tool(s): 100-012, 100-012-01, 308-375
