Extension Housing Seal - GTDI 2.0L Petrol/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (G1450192): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Refer to Battery Disconnect and Connect (General Procedures).
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

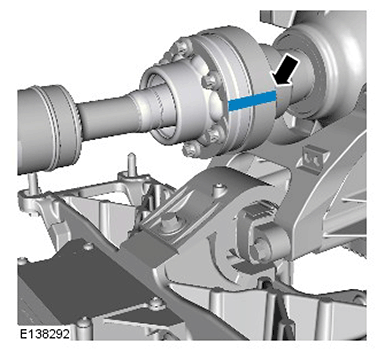

NOTE: Mark the position of the driveshaft on the transmission flange.

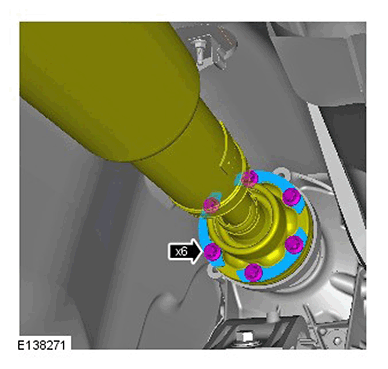

CAUTION:
- Make sure that the driveshaft is supported with suitable retaining straps.
- Discard the bolts.
Tie aside with a suitable tie strap.
Refer to Transmission Support Insulator - GTDi 2.0L Petrol//V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (Removal and Installation).
CAUTION: Discard the nut.

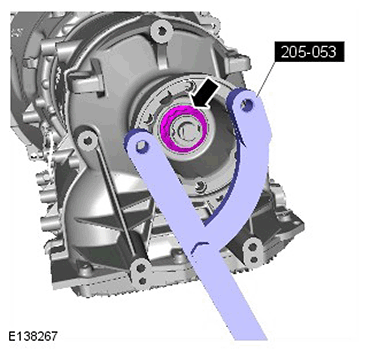

Special Tool(s): 205-053

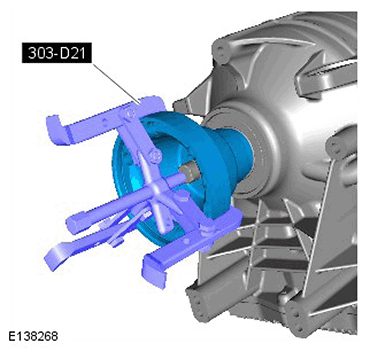

Special Tool(s): 303-D121
CAUTION: Discard the seal.

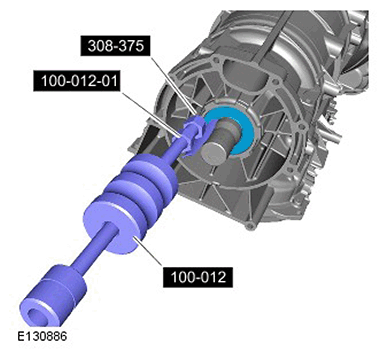

Special Tool(s): 100-012, 100-012-01, 308-375
