Extension Housing Seal - GTDI 2.0L Petrol/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (G1450192): Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

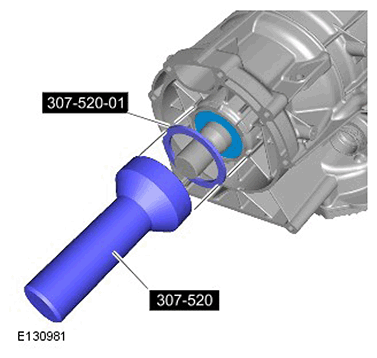

  1. CAUTION:
    • Make sure that the mating faces are clean and free of foreign material.
    • Install a new seal.
    G11417301

    Special Tool(s):  307-520, 307-520-01

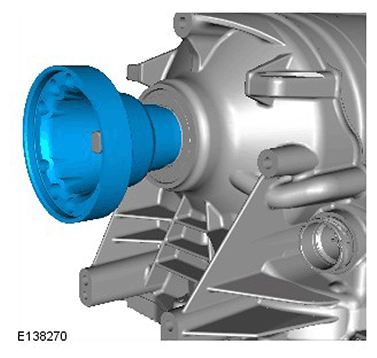

  2. G11417302

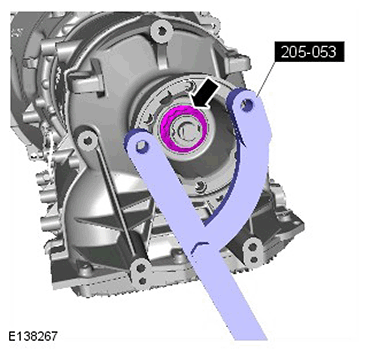

  3. CAUTION: Make sure that a new nut is installed.
    G11417303

    Torque: 60 Nm

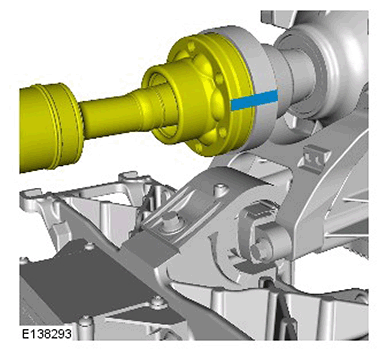

  4. NOTE: Make sure that you re-align the driveshaft to the transmission flange using the alignment mark.
    G11417304

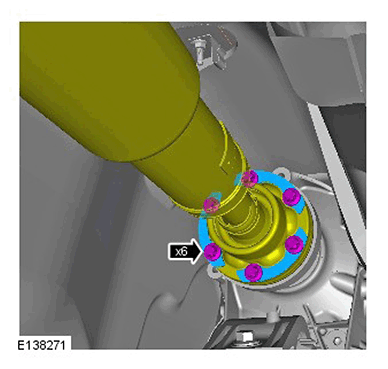

  5. CAUTION: Make sure that new bolts are installed.
    G11417305

    Torque: 75 Nm

  6. Refer to Transmission Support Insulator - GTDi 2.0L Petrol//V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol  (Removal and Installation).
  7. Refer to Battery Disconnect and Connect (General Procedures).
