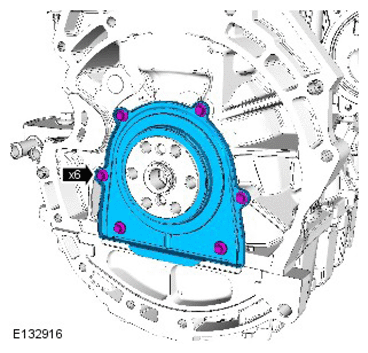

Crankshaft Rear Seal (G1550155): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some illustrations may show the engine removed for clarity.
Some variation in the illustrations may occur, but the essential information is always correct.

Disconnect the battery ground cable.
Refer to: Battery Disconnect and Connect (General Procedures).
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: Flexplate (Removal and Installation).
