Crankshaft Rear Seal (G1550155): Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

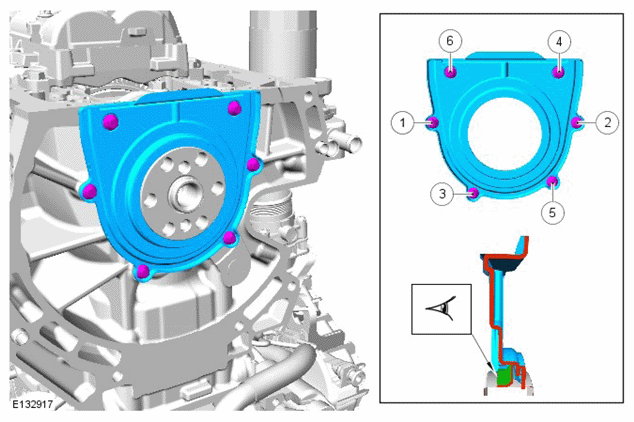

  1. CAUTION: Make sure that the crankshaft rear oil seal is correctly located.
    G11418274

    Torque Specification: 10 Nm

  2. Refer to: Flexplate (Installation ).
  3. Connect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).
