Spark Plugs and Coils
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

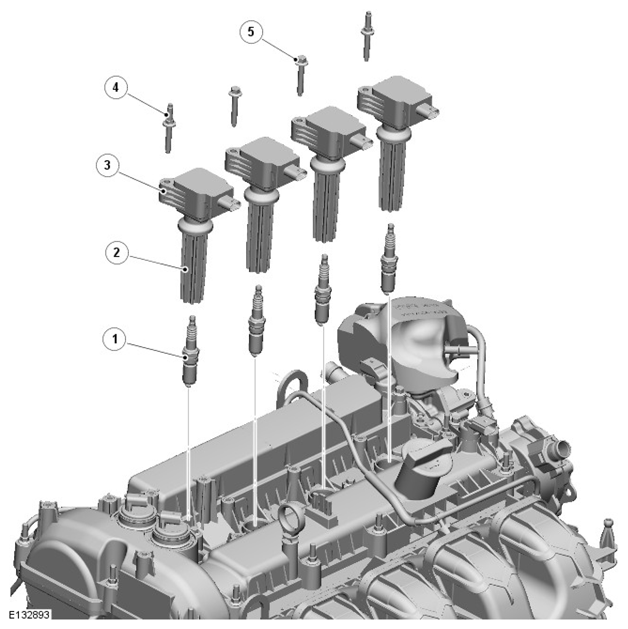

| ITEM | DESCRIPTION |
|---|---|
| 1 | Spark plug (4 off) |
| 2 | Plug cap (4 off) |
| 3 | Ignition coil (4 off) |
| 4 | Stud, washer and nut (2 off) |
| 5 | Bolt (2 off) |
Four spark plugs are located in recessed threaded bosses in the top of the cylinder head. The ignition coil and spark plug cap are combined and are secured in the head with two bolts for the two inner coils and two studs, washers and nuts for the outer coils.
