Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Engine Oil Draining and Filling  (Engine - V6 S/C 3.0L Petrol, General Procedures).

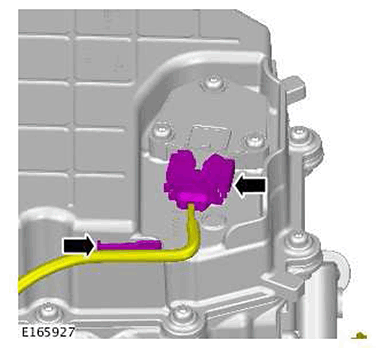

  4. G11415780

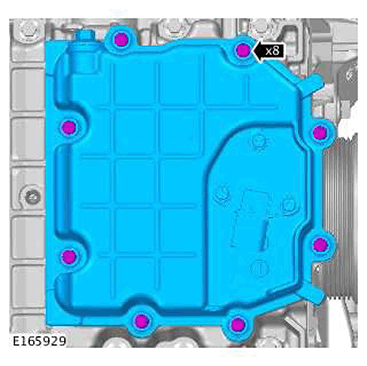

  5. G11415781

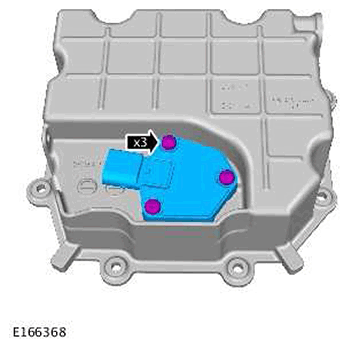

  6. NOTE:
    • Do not disassemble further if the component is removed for access only.
    • Remove and discard the O-ring seal.
    G11415782
