Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Some illustrations may show the engine removed for clarity.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Oil Pan Extension - RWD  (Engine - V6 S/C 3.0L Petrol, Removal and Installation).

    Refer to: Oil Pan - AWD  (Engine - V6 S/C 3.0L Petrol, Removal and Installation).

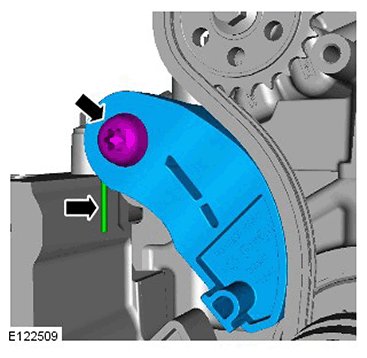

  4. G11416145

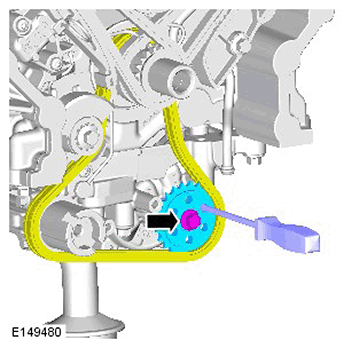

  5. G11416146
  6. CAUTION: Take extra care when removing the component, prevent damage to the mating faces.

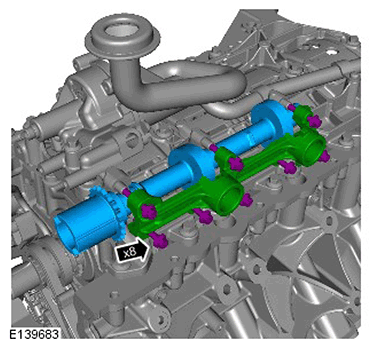

    G11416147
