Removal And Installation: Removal
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: Lifting (Jacking and Lifting, Description and Operation).
- Disconnect the start-up battery ground cable.
Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
- Remove the flexplate.
Refer to: Flexplate (Engine - V6 S/C 3.0L Petrol, Removal and Installation).

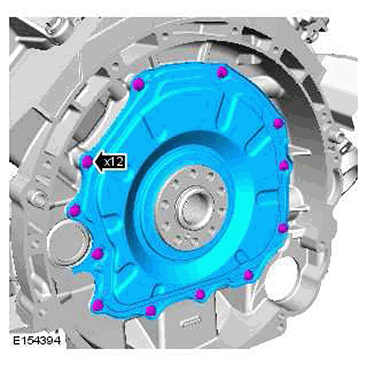

Remove and discard the crankshaft rear oil seal plate.
