Removal And Installation: Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

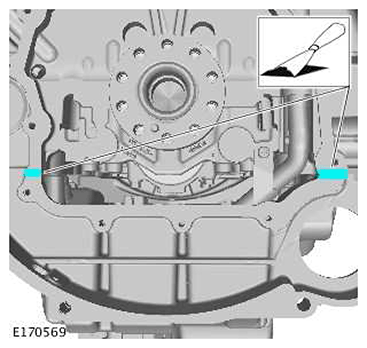

  1. CAUTION:
    • Use only a plastic scraper when removing the sealing material.
    • Make sure that the mating faces are clean and free of foreign material.
    • Make sure that the Land Rover approved cleaning fluid (Loctite 7063) is used to clean the mating faces.
    G11415552

    Using a suitable tool remove the sealing material.

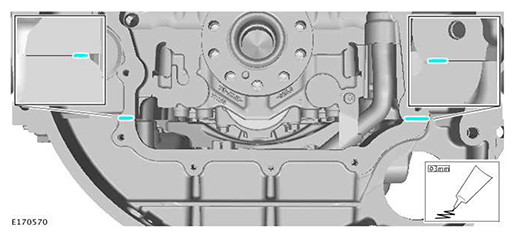

  2. CAUTION: Make sure that the Land Rover approved sealant, covers the mating faces of the cylinder block and the oil pan.
    G11415553

    Apply RTV sealant (Loctite 5901G or Loctite 5900) in a 2-3mm diameter to the areas shown, and install the engine rear oil seal plate within 7 minutes.

    Refer to: Specifications  (Engine - V6 S/C 3.0L Petrol, Specifications).

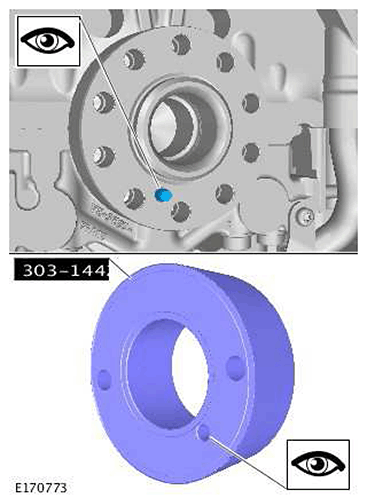

  3. CAUTION: Make sure that the special tool is correctly located.
    G11415554

    Install the special tool as indicated.

    Special Tool(s):  303-1442

  4. NOTE: Install the bolts finger tight.

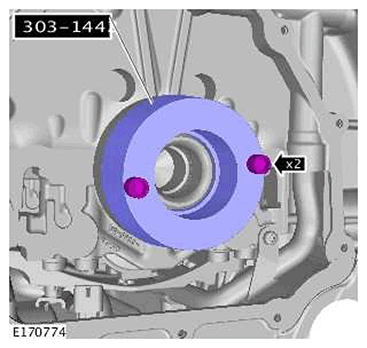

    G11415555

    Install the special tool.

    Special Tool(s):  303-1442

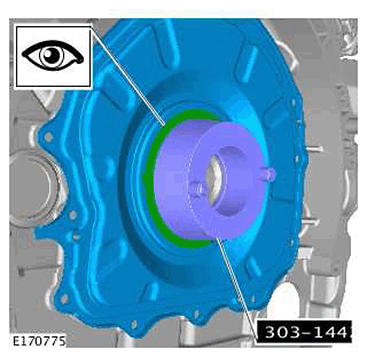

  5. CAUTION: Do not fully install the component. Maintain a clearance of 8mm, between the rear oil seal plate and the cylinder block, as smearing of the sealant may occur.
    G11415556

    Install the new crankshaft rear oil seal plate.

    Special Tool(s):  303-1442

    Renew Part: Crankshaft rear seal.

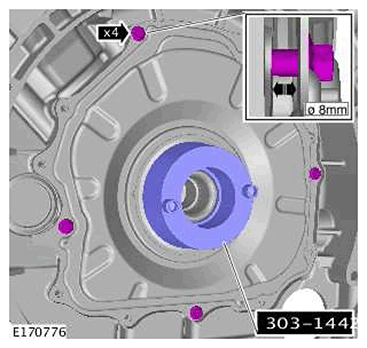

  6. G11415557

    Install the bolts and maintain the clearance of 8mm.

    Special Tool(s):  303-1442

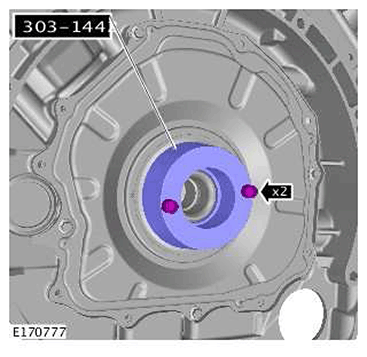

  7. G11415558

    Remove the special tool.

    Special Tool(s):  303-1442

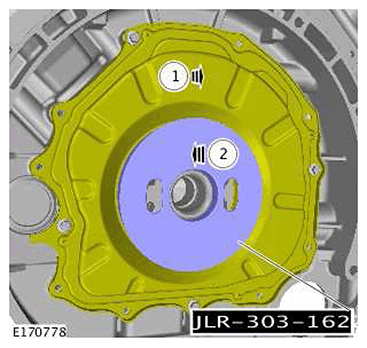

  8. CAUTION: Apply pressure to the rear oil seal plate in the sequence shown, when installing the special tool.
    G11415559

    Install the crankshaft rear oil seal plate in the sequence shown.

    Special Tool(s):  JLR-303-1622

  9. NOTE: Tighten the bolts in the indicated sequence.
    G11415560

    Using the special tool, install the component.

    Special Tool(s):  JLR-303-1622

    Torque Specification: 11 Nm

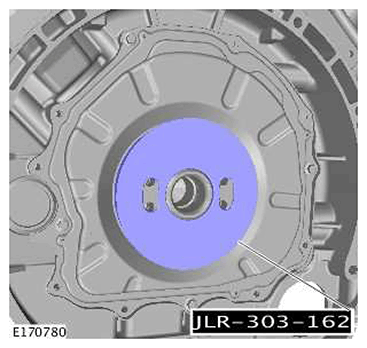

  10. G11415561

    Remove the special tool.

    Special Tool(s):  JLR-303-1622

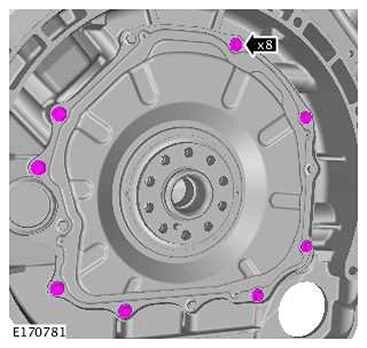

  11. G11415562

    Install the remaining 8 rear oils seal bolts.

    Torque Specification: 11 Nm

  12. Install the flexplate.

    Refer to: Flexplate  (Engine - V6 S/C 3.0L Petrol, Removal and Installation).

  13. Connect the start-up battery ground cable.

    Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
