Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the start-up battery ground cable.

    Refer to: Specifications (Battery, Mounting and Cables, Specifications).

  2. Raise and support the vehicle on a suitable 2 post lift. Refer to: Lifting (Jacking and Lifting, Description and Operation).
  3. Remove the cooling fan.

    Refer to: Cooling Fan Motor and Shroud (V6 S/C 3.0L Petrol, Removal and Installation).

  4. Remove the starter motor.

    Refer to: Starter Motor (V6 S/C 3.0L Petrol, Removal and Installation).

  5. G11415496

    Remove the supercharger drive belt.

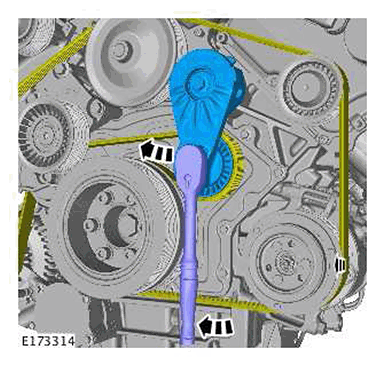

  6. G11415497

    Remove the accessory drive belt.

  7. G11415498
    • Install the special tool.
    • Vehicles without Auto stop/start system.

      Special Tool(s):  303-1448

    • Vehicles with Auto stop/start system.

      Special Tool(s):  JLR-303-1304

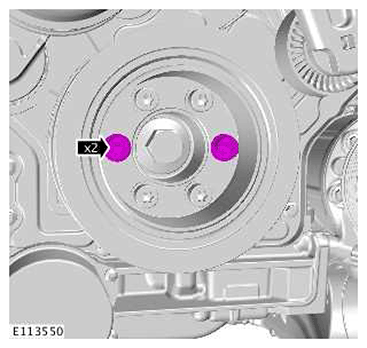

  8. G11415499

    Remove the bolts.

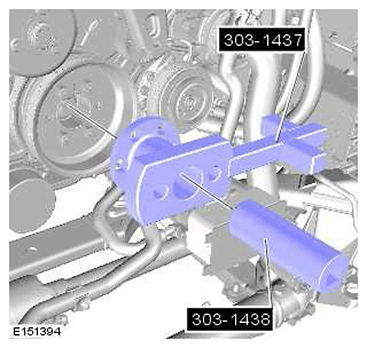

  9. G11415500
    • Install the special tools.
    • Special Tool(s):  303-1437
    • Special Tool(s):  303-1438

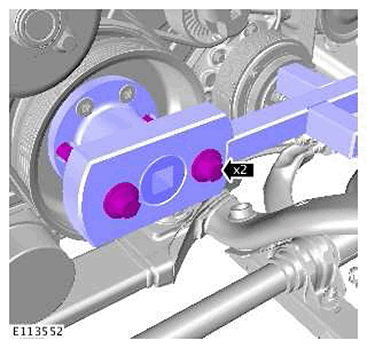

  10. G11415501

    Install the bolts.

    Torque Specification: 25 Nm

  11. G11415502
    • Remove the special tool.
    • Vehicles without Auto stop/start system.

      Special Tool(s):  303-1448

    • Vehicles with Auto stop/start system.

    Special Tool(s):  JLR-303-1304

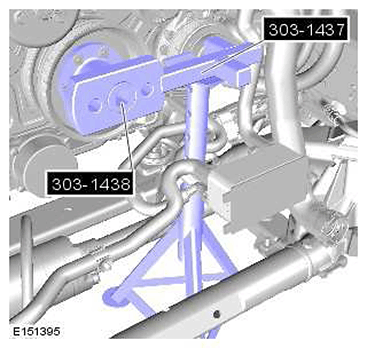

  12. G11415503
    • Using a suitable vehicle stand, support the special tools.
    • Special Tool(s):  303-1437
    • Special Tool(s):  303-1438
  13. NOTE: The crankshaft pulley bolt will be very tight.

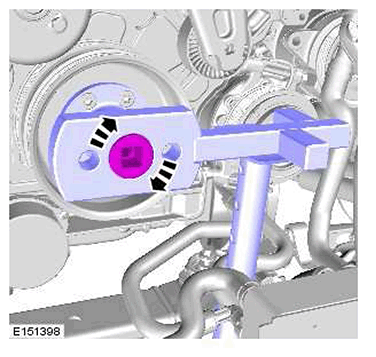

    G11415504

    Remove the crankshaft pulley bolt.

  14. G11415505
    • Install the special tool.
    • Vehicles without Auto stop/start system.

      Special Tool(s):  303-1448

    • Vehicles with Auto stop/start system.

      Special Tool(s):  JLR-303-1304

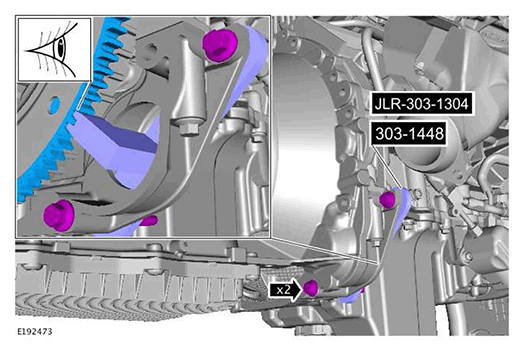

  15. G11415506
    • Remove the two bolts.
  16. G11415507
    • Remove the special tools.
    • Special Tool(s):  303-1437
    • Special Tool(s):  303-1438
  17. G11415508

    Remove and discard the bolt.

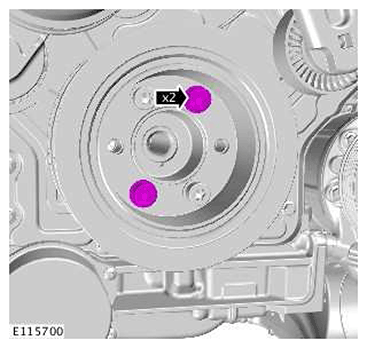

  18. G11415509

    Remove the bolts.

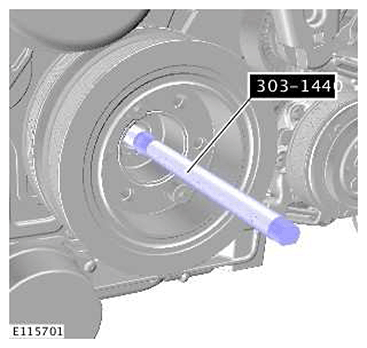

  19. G11415510
    • Install the special tool.
    • Special Tool(s):  303-1440

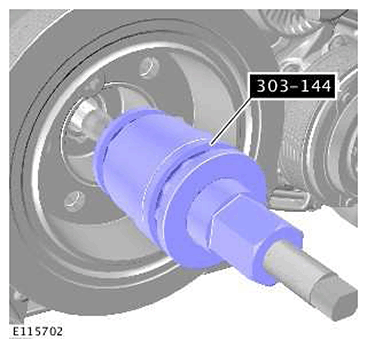

  20. G11415511
    • Install the special tool.
    • Special Tool(s):  303-1441

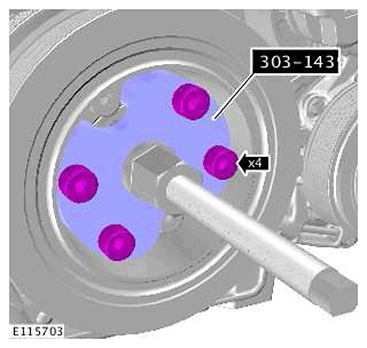

  21. G11415512
    • Install the special tool.
    • Special Tool(s):  303-1439

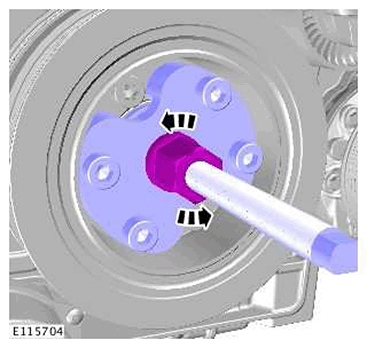

  22. G11415513

    Rotate the special tool nut to remove the crankshaft pulley.

  23. NOTE: Make sure to clean the threads in the end of the crankshaft and that the crank nose is free of any foreign materials.

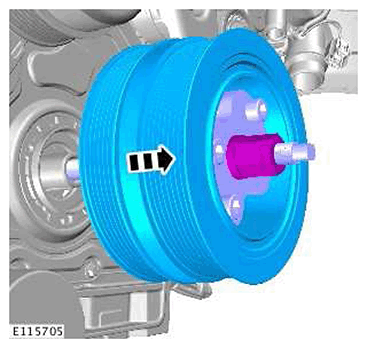

    G11415514
    1. Remove the crankshaft pulley.
    2. Remove and discard the friction washer.

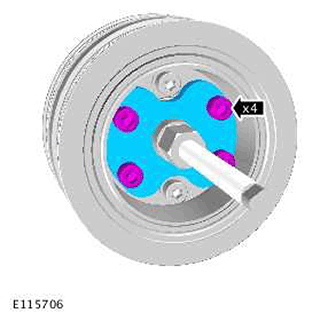

  24. G11415515

    Remove the special tool.

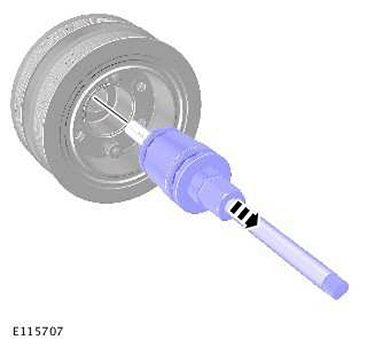

  25. G11415516

    Remove the special tool.
