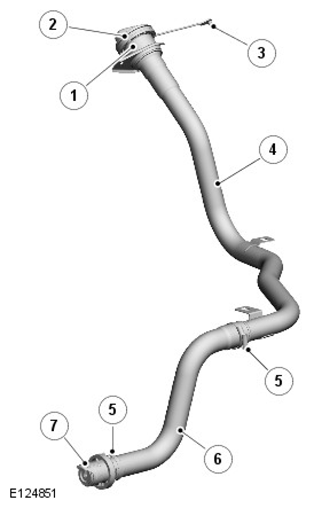

Fuel Filler Pipe (ROW)
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Wide bore fuel filler neck |
| 2 | Fuel filler cap |
| 3 | Fuel filler cap lanyard |
| 4 | Fuel filler pipe |
| 5 | Hose clamp (2 of) |
| 6 | Fuel filler hose |
| 7 | Hose connection with fuel tank inlet check valve |

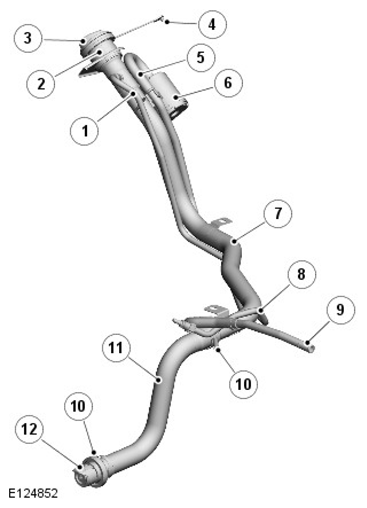

Fuel Filler Pipe (NAS)
| ITEM | DESCRIPTION |
|---|---|
| 1 | Anti-trickle valve assembly |
| 2 | Wide bore fuel filler neck |
| 3 | Fuel filler cap |
| 4 | Fuel filler cap lanyard |
| 5 | DMTL breather hose |
| 6 | DMTL breather dust filter |
| 7 | Fuel filler pipe |
| 8 | DMTL vapor leak pipe |
| 9 | Connection to evaporative emissions canister |
| 10 | Hose clamp (2 of) |
| 11 | Fuel filler hose |
| 12 | Hose connection with fuel tank inlet check valve |
The fuel filler neck is positioned at the rear of the vehicle, above the right rear wheel. The filler neck is covered by a molded plastic cover which is electrically locked when the vehicle is locked. The fuel filler cap is a conventional screw in type which is secured to the vehicle with a lanyard.
The filler neck is stainless steel fabrication which is secured to the vehicle body with 2 brackets and a location lug on the fuel filler bowl. The formed fuel filler pipe locates in a short flexible hose attached to the tank which is secured with worm drive hose clamps at each end. The hose, in turn, connects with a fuel tank inlet check valve which prevents fuel within the tank re-entering the fuel filler hose and pipe.
