Component Location - V6 3.0L S/C Petrol - Rest Of World (Row)
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

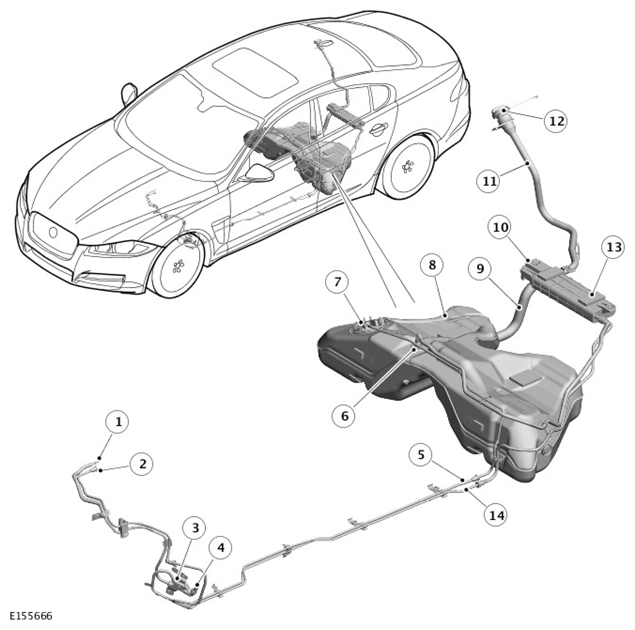

| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel feed pipe connection |
| 2 | Evaporative Emissions (EVAP) pipe connection |
| 3 | Manifold |
| 4 | Low Pressure (LP) sensor |
| 5 | Fuel feed pipe |
| 6 | Fuel vapor vent valve |
| 7 | Fuel pump module assembly |
| 8 | Fuel tank |
| 9 | Fuel filler hose |
| 10 | Fuel Pump Driver Module (FPDM) |
| 11 | Fuel filler pipe |
| 12 | Fuel filler cap and lanyard |
| 13 | Charcoal canister |
| 14 | Pipe - EVAP charcoal canister to purge valve |
