Cooling Fan Motor And Shroud (G1557114): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Make sure that all openings are sealed. Use new blanking caps.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Disconnect the battery ground cable.

    Refer to Battery Disconnect and Connect (General Procedures).

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to Radiator Splash Shield (Front End Body Panels, Removal and Installation).

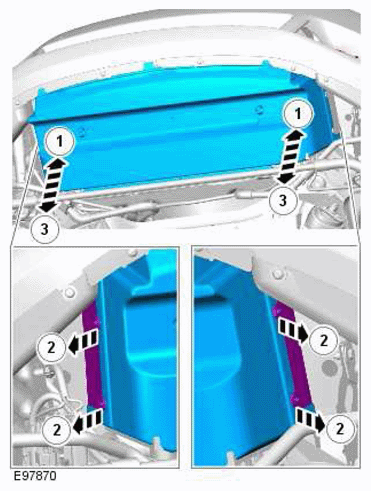

  4. G11418875

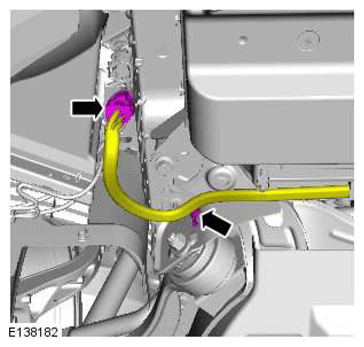

  5. G11418876

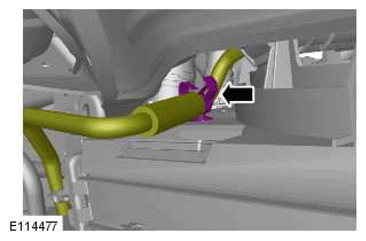

  6. G11418877
  7. Refer to Air Cleaner (Removal and Installation).
  8. Refer to Air Cleaner Outlet Pipe (Removal and Installation).
  9. NOTE: Secure with cable ties.

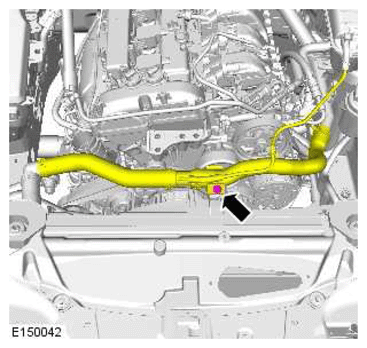

    G11418878
    • Torque Specification: 7 Nm

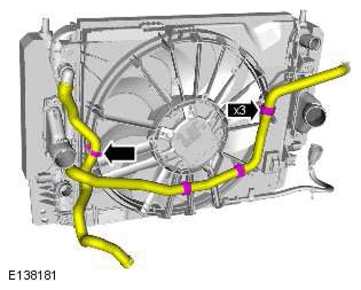

  10. G11418879

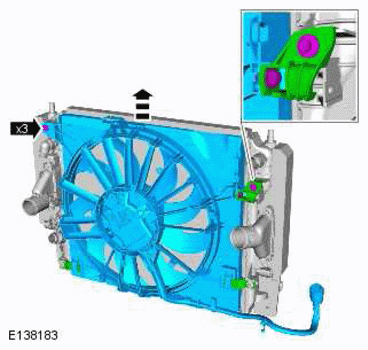

  11. G11418880
    • Torque Specification: 7 Nm

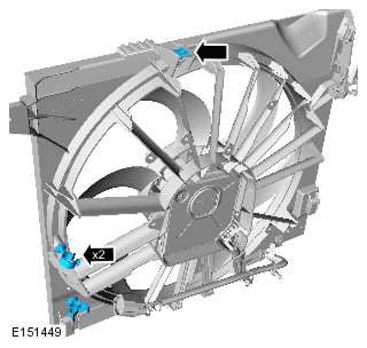

  12. G11418881
