Coolant Pump (G1557116): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G1816880) .
  3. NOTE: Loosen the bolts, but do not fully remove.
    G11418888

    Torque Specification: 20 Nm

  4. Refer to Accessory Drive Belt (Removal and Installation).

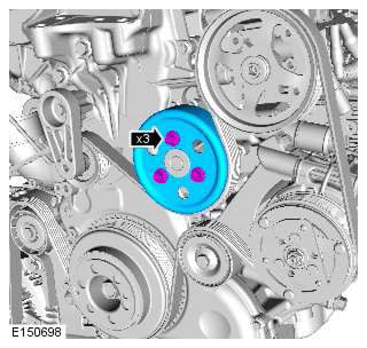

  5. G11418889
  6. CAUTION: Be prepared to collect escaping fluids.

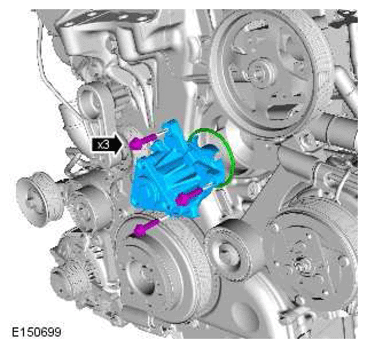

    G11418890

    Torque Specification: 10 Nm
