Component Location
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

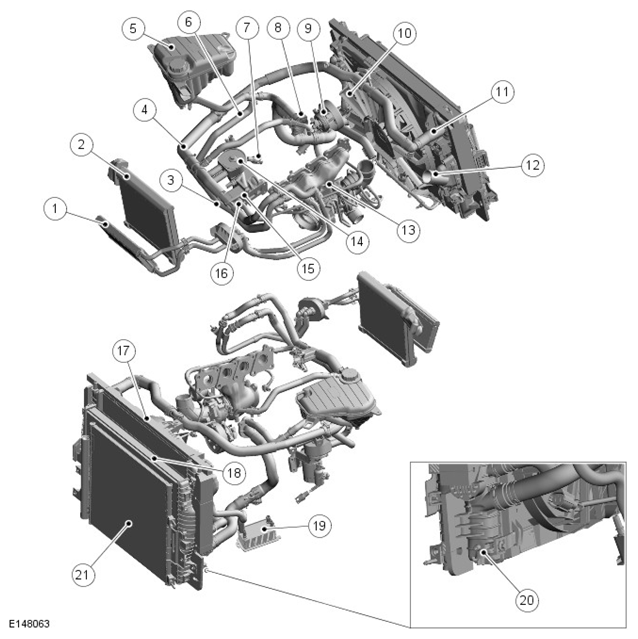

| ITEM | DESCRIPTION |
|---|---|
| 1 | Heater core |
| 2 | Air Conditioning (A/C) Evaporator (ref only) |
| 3 | Heater inlet hose |
| 4 | Heater outlet hose/Oil cooler inlet hose |
| 5 | Degas tank |
| 6 | By-pass hose |
| 7 | Block heater (where fitted) |
| 8 | Thermostat and housing |
| 9 | Water pump |
| 10 | Electric cooling fan |
| 11 | Radiator top hose |
| 12 | Charge air cooler (reference only) |
| 13 | Turbocharger |
| 14 | Engine oil cooler |
| 15 | Water pump |
| 16 | Turbocharger water outlet pipe |
| 17 | Engine cooling radiator |
| 18 | Intercooler |
| 19 | Transmission oil cooler (hot climate markets only) |
| 20 | Engine coolant drain plug |
| 21 | A/C condenser (reference only) |
