Radiator (G1773691): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. WARNING:
    • Since injury such as scalding could be caused by escaping steam or coolant, do not remove the filler cap from the coolant expansion tank while the system is hot.
    • Be prepared to catch escaping fluid.

    Refer to: Cooling System Partial Draining, Filling and Bleeding  (V6 S/C 3.0L Petrol, General Procedures).

  3. Refer to: Cooling Fan Motor and Shroud  (V6 S/C 3.0L Petrol, Removal and Installation).
  4. CAUTION: Be prepared to collect escaping coolant.

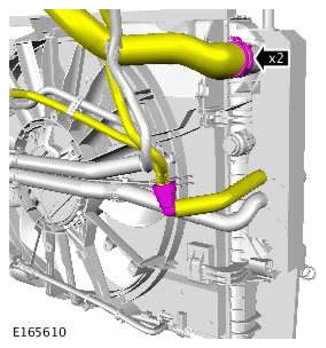

    G11418787
  5. CAUTION: Be prepared to collect escaping coolant.

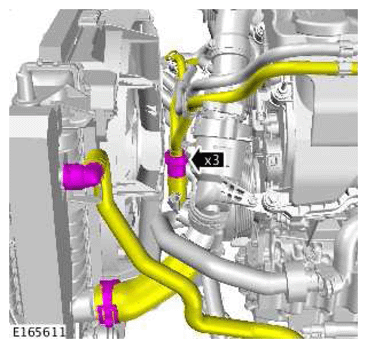

    G11418788

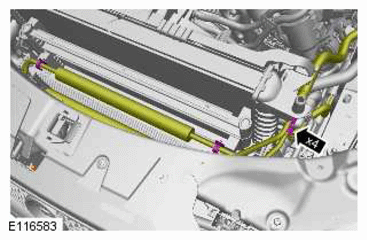

  6. G11418789
  7. CAUTION: Be prepared to collect escaping coolant.

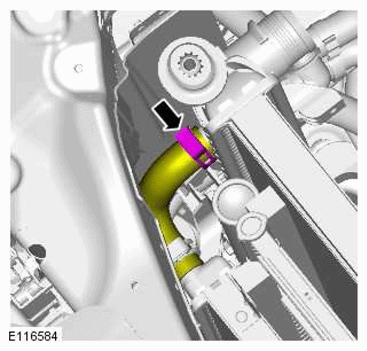

    G11418790

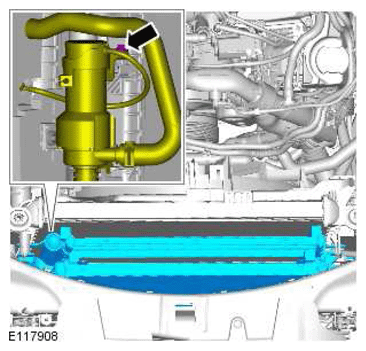

  8. G11418791

    Torque Specification: 7 Nm

  9. NOTE: Support the air conditioning (A/C) condenser.

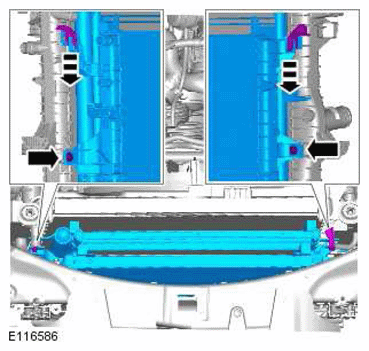

    G11418792

    Torque Specification: 7Nm

  10. CAUTION: Be prepared to collect escaping coolant.

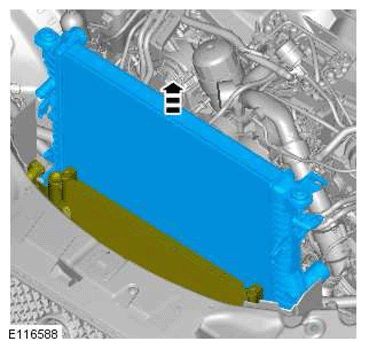

    G11418793
  11. NOTE: Do not disassemble further if the component is removed for access only.

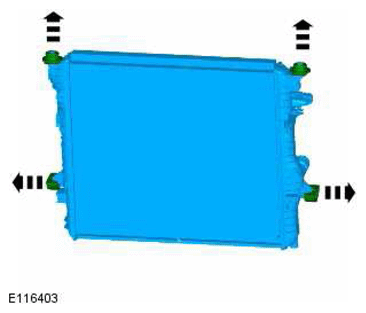

    G11418794

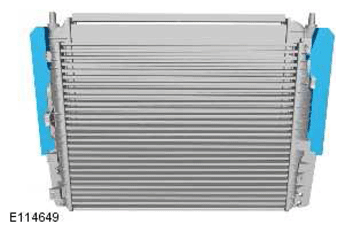

  12. G11418795
