Electric Thermostat (G1772758): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: Cooling System Partial Draining and Vacuum Filling (General Procedures).
Refer to: Air Cleaner Outlet Pipe T-Connector (Intake Air Distribution and Filtering - V6 S/C 3.0L Petrol, Removal and Installation).
Refer to: Left Air Cleaner Outlet Pipe (Intake Air Distribution and Filtering - V6 S/C 3.0L Petrol, Removal and Installation).
Refer to: Left Air Cleaner (Intake Air Distribution and Filtering - V6 S/C 3.0L Petrol, Removal and Installation).

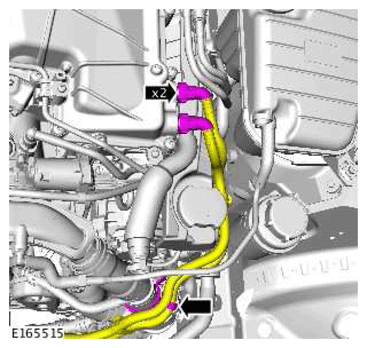

CAUTION: Be prepared to collect escaping coolant.

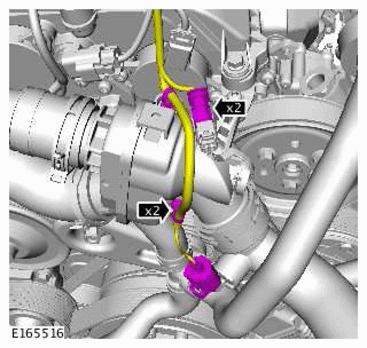

CAUTION: Be prepared to collect escaping coolant.

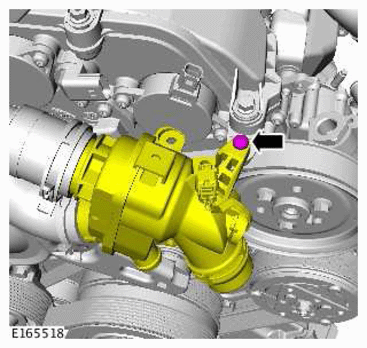

Torque Specification: 9 Nm

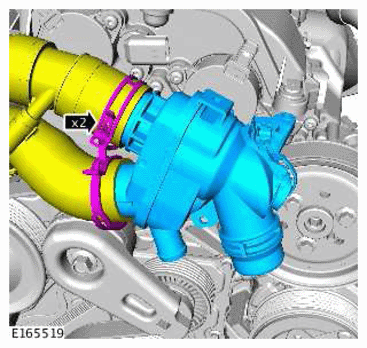

CAUTION: Be prepared to collect escaping coolant.

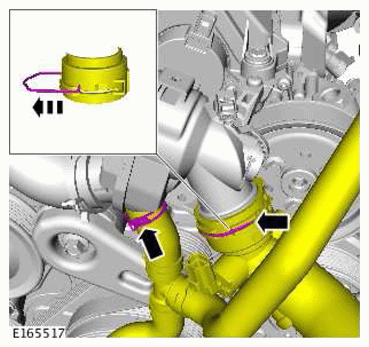

NOTE: The retaining clips cannot be removed from the pipe.
