Cooling Fan Motor And Shroud (G1772811): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Radiator Splash Shield (Front End Body Panels, Removal and Installation).
  4. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

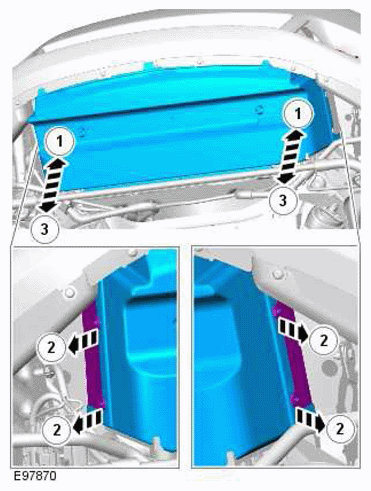

    G11418752

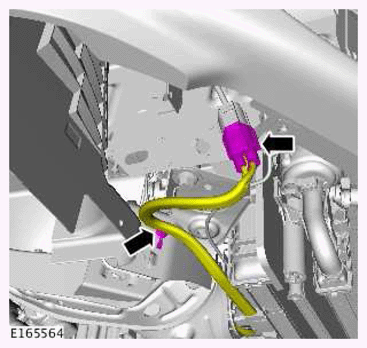

  5. G11418753

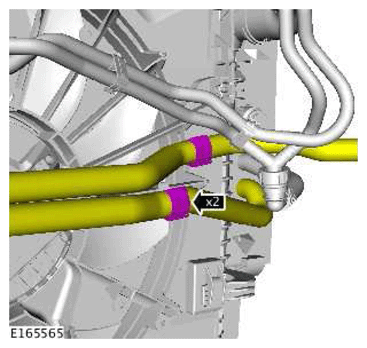

  6. G11418754
  7. Lower the vehicle.
  8. Refer to: Left Air Cleaner Outlet Pipe (Intake Air Distribution and Filtering - V6 S/C 3.0L Petrol, Removal and Installation).
  9. Refer to: Right Air Cleaner Outlet Pipe (Intake Air Distribution and Filtering - V6 S/C 3.0L Petrol, Removal and Installation).
  10. Refer to: Air Cleaner Outlet Pipe T-Connector (Intake Air Distribution and Filtering - V6 S/C 3.0L Petrol, Removal and Installation).
  11. Refer to: Left Air Cleaner (Intake Air Distribution and Filtering - V6 S/C 3.0L Petrol, Removal and Installation).
  12. Refer to: Right Air Cleaner (Intake Air Distribution and Filtering - V6 S/C 3.0L Petrol, Removal and Installation).

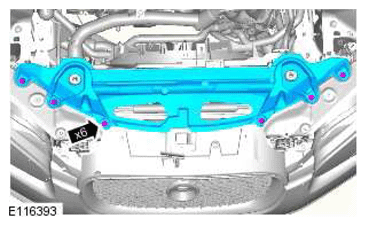

  13. G11418755

    Torque Specification: 9 Nm

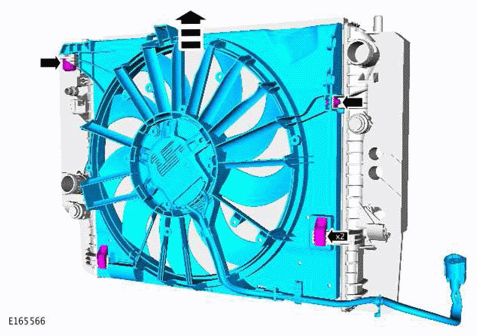

G11418756

Torque Specification: 7 Nm
