Coolant Pump (G1772458): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: Cooling System Partial Draining and Vacuum Filling (General Procedures).
Refer to: Accessory Drive Belt (V6 S/C 3.0L Petrol, Removal and Installation).

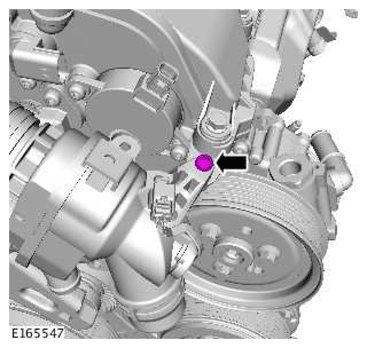

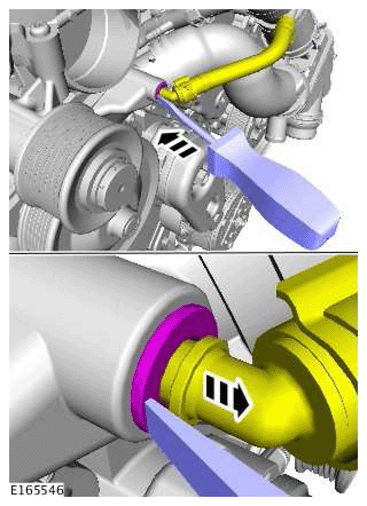

Torque Specification: 9 Nm

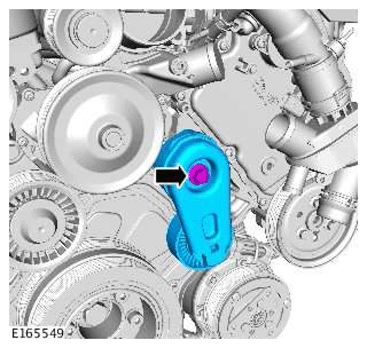

Torque Specification: 47 Nm

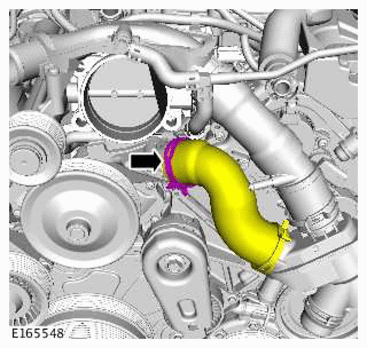

WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.

CAUTION: Engine coolant will damage the paint finished surfaces. If spilt, immediately remove the coolant and clean the area with water.

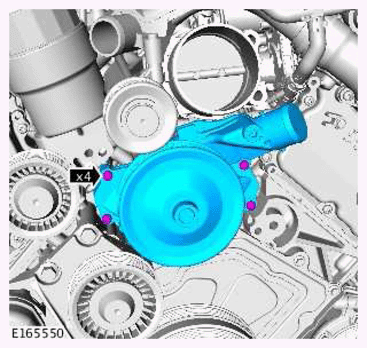

NOTE: Engine shown removed for clarity.

Torque Specification: 12 Nm
CAUTION: Note the fitted position of the component prior to removal.

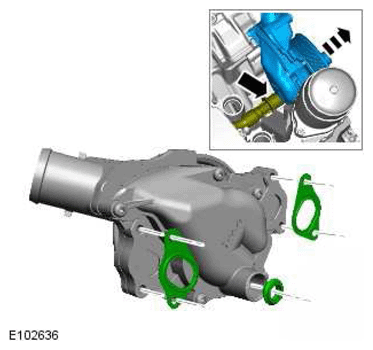

NOTE: Remove and discard the gasket.
