Coolant Pump (G1772458): Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

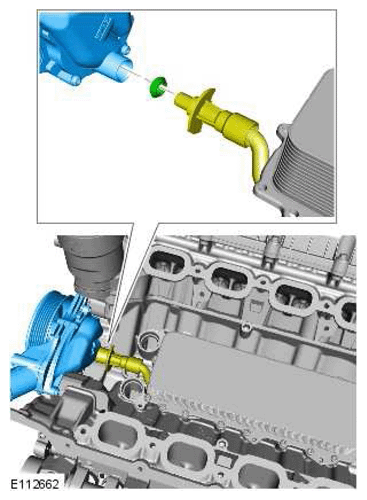

  1. CAUTION: A new O-ring seal is to be installed.
    NOTE:
    • Engine shown removed for clarity.
    • Some variation in the illustrations may occur, but the essential information is always correct.
    G11418781

    To install, reverse the removal procedure.
