Coolant Expansion Tank (G1085721): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. Using a syringe, remove the cooling fluid from the expansion tank.
  3. CAUTION: Take extra care not to damage the component.

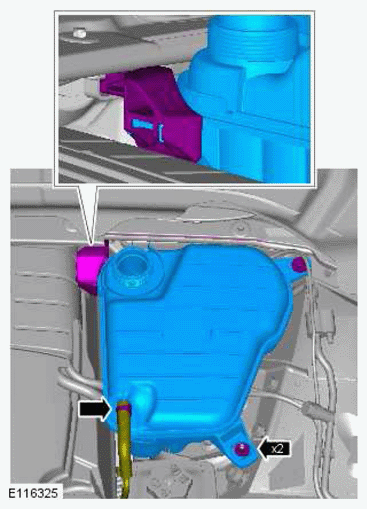

    G11418744

    Torque Specification: 7 Nm

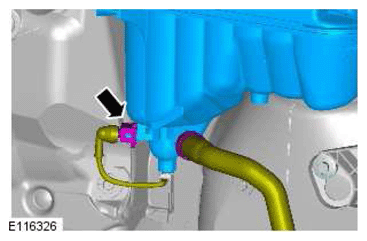

  4. G11418745
  5. CAUTION: Note the fitted position of the component prior to removal.
    NOTE:
    • Do not disassemble further if the component is removed for access only.
    • Make sure that the component is installed to the position noted on removal.

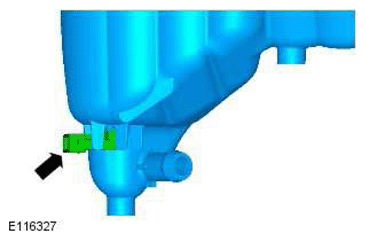

    G11418746
