Cooling System Partial Draining, Filling And Bleeding (G1556999): Draining

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Radiator Splash Shield (Front End Body Panels, Removal and Installation).
  3. WARNING:
    • Release the cooling system pressure by slowly turning the coolant expansion tank cap a quarter of a turn. Cover the expansion tank cap with a thick cloth to prevent the possibility of scalding. Failure to follow this instruction may result in personal injury.
    • Be prepared to collect escaping fluid.
    CAUTION: Since injury such as scalding could be caused by escaping steam or coolant, make sure the vehicle cooling system is cool prior to carrying out this procedure.

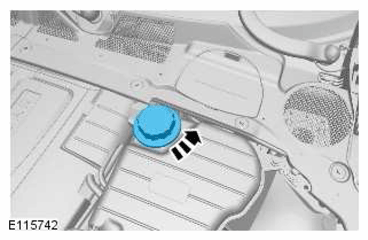

    G11418710
  4. CAUTION: Be prepared to collect escaping fluids.

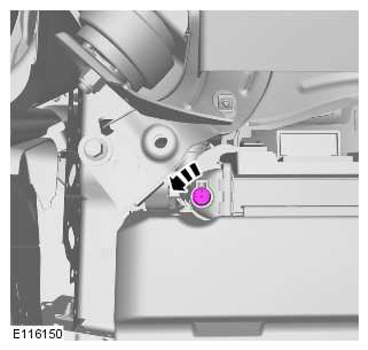

    G11418711
  5. G11418712

    Torque Specification: 2 Nm
