Cooling System Partial Draining And Vacuum Filling (G1816880): Filling

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Since injury such as scalding could be caused by escaping steam or coolant, do not remove the filler cap from the coolant expansion tank while the system is hot.
CAUTION:
  • The engine cooling system must be maintained with the correct concentration and type of anti-freeze solution to prevent corrosion and frost damage. Failure to follow this instruction may result in damage to the engine.
  • Engine coolant will damage the paint finished surfaces. If spilt, immediately remove the coolant and clean the area with water.
  1. NOTE: If equipped.

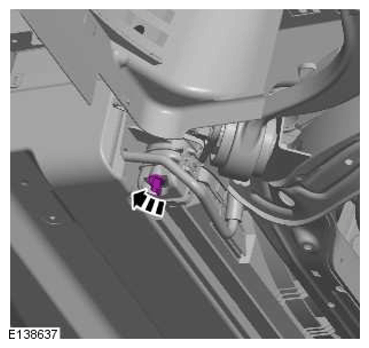

    G11418732
  2. NOTE: If equipped.

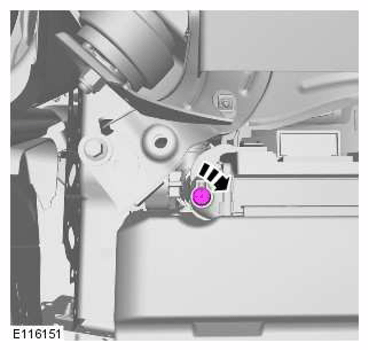

    G11418733

    Torque Specification: 2 Nm

  3. Refer to: Radiator Splash Shield (Front End Body Panels, Removal and Installation).
  4. Prepare a sufficient amount of coolant to the specified concentration.

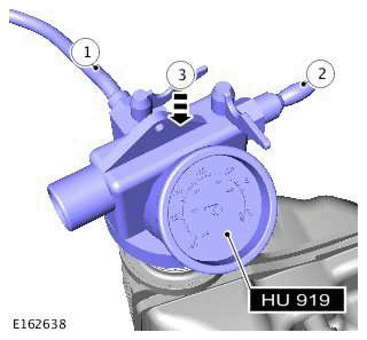

  5. G11418734
    NOTE:
    • Make sure the coolant supply valve is in the closed position on the special tool.
    • The special tool needs an air pressure of 6 to 8 bar (87 to 116 psi) to operate correctly.
    • Small diameter or long airlines may restrict airflow to the coolant vacuum fill tool.
    1. Position the hose from the special tool into a container of clean coolant.
    2. Connect a regulated compressed air supply to the special tool.
    3. Move the special tool to the expansion tank.

      Special Tool(s):  HU-919

  6. NOTE:
    • Make sure the coolant supply valve is in the closed position on the special tool.
    • The special tool needs an air pressure of 6 to 8 bar (87 to 116 psi) to operate correctly.
    • Small diameter or long airlines may restrict airflow to the coolant vacuum fill tool.

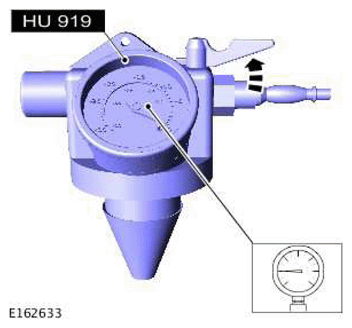

    G11418735

    Open the air supply valve until -8 (-12 psi) Bar is shown on the gauge.

    Special Tool(S):  HU-919

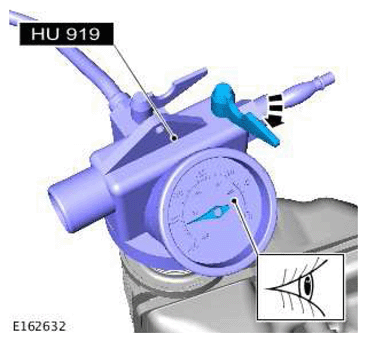

  7. G11418736
    • Close the air supply valve.
    • Allow 1 minute to check the vacuum is held.

      Special Tool(s):  HU-919

  8. NOTE:
    • The coolant is to be reused.
    • Close the coolant supply valve when the coolant expansion tank MAX mark is reached or coolant movement has stopped.

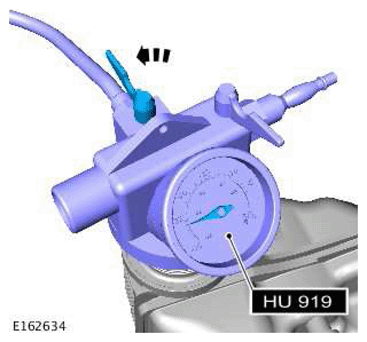

    G11418737

    Open the coolant supply valve and allow the coolant to be drawn into the system.

    Special Tool(s):  HU-919

  9. Remove the special tool.
  10. Connect exhaust extraction hoses to the tail pipes.
  11. Start and run the engine.
  12. CAUTION: Correct installation of the coolant expansion tank cap can be obtained by tightening the cap until 3 audible clicks are heard.

    Install the coolant expansion tank cap.

  13. Hold the engine speed at 2000 revolutions per minute (RPM) until warm air is expelled from the heater.

  14. Switch the engine off and allow to cool.
  15. Clean any spilt or excess coolant from the vehicle.
  16. WARNING: Since injury such as scalding could be caused by escaping steam or coolant, allow the vehicle cooling system to cool prior to carrying out this procedure.

    Check and top-up the coolant if required.
