Cooling System Draining And Vacuum Filling (G1269230): Draining

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Radiator Splash Shield (Front End Body Panels, Removal and Installation).
  3. WARNING: Release the cooling system pressure by slowly turning the coolant expansion tank cap a quarter of a turn. Cover the expansion tank cap with a thick cloth to prevent the possibility of scalding. Failure to follow this instruction may result in personal injury.
    CAUTION:
    • Since injury such as scalding could be caused by escaping steam or coolant, make sure the vehicle cooling system is cool prior to carrying out this procedure
    • Be prepared to collect escaping coolant.

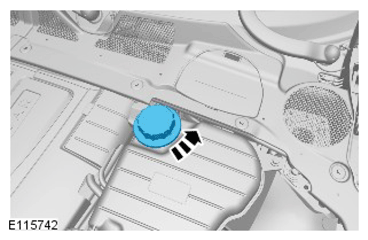

    G11418704
  4. CAUTION: Be prepared to collect escaping coolant.

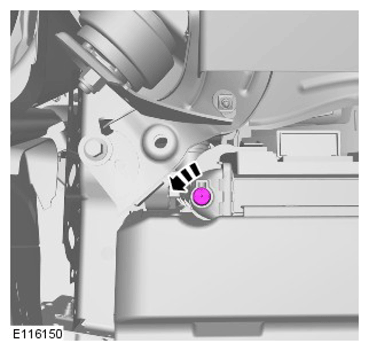

    G11418705
  5. G11418706

    Torque Specification: 2 Nm

  6. CAUTION: Be prepared to collect escaping coolant.
    NOTE: Only carry out the following step if the coolant is to be drained from the engine.

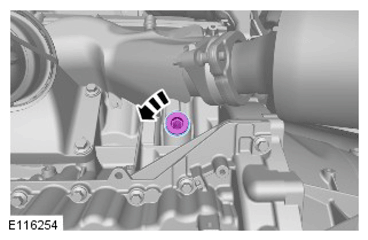

    G11418707
  7. NOTE: This step is only required if previously removed.

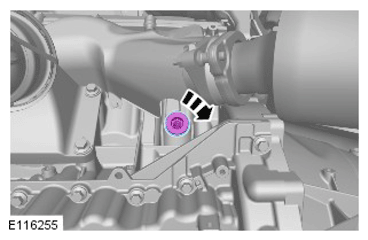

    G11418708

    Torque Specification: 50 Nm
