Heater Manifold
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

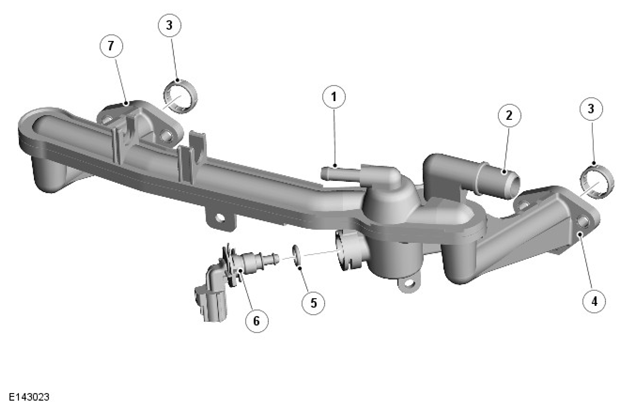

| ITEM |
DESCRIPTION |
| 1 |
Throttle body heater hose connection |
| 2 |
Heater core supply hose connection |
| 3 |
Seal (2 off) |
| 4 |
Bank 1 cylinder head connection |
| 5 |
O-ring seal |
| 6 |
Engine Coolant Temperature (ECT) sensor 2 |
| 7 |
Bank 2 cylinder head connection |
