Engine Coolant Outlet Tube

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

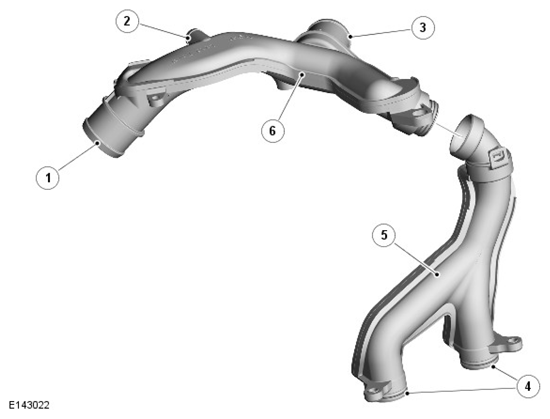

G11418701
ITEM DESCRIPTION
1 Thermostat hose connection
2 Bleed hose connection
3 Radiator upper hose connection
4 Cylinder block connections
5 Coolant outlet tube
6 Coolant supply tube
