Auxiliary Radiator (Where Fitted)
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

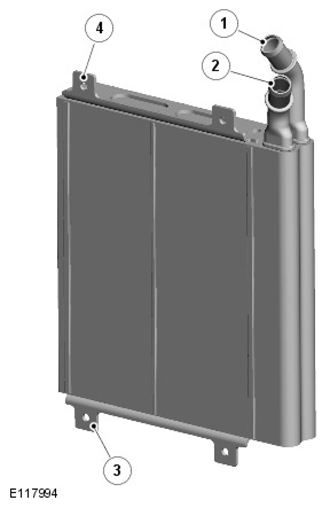

| ITEM | DESCRIPTION |
|---|---|
| 1 | Coolant return hose connection |
| 2 | Coolant supply hose connection |
| 3 | Bottom bracket |
| 4 | Top bracket |
The auxiliary radiator is increase engine cooling capacity on hot climate market vehicles. The auxiliary radiator is connected in parallel with the (main) radiator and installed in an air duct, which takes cooling air from the right side grille in the front bumper. Two spigots on the top of the auxiliary radiator provide the coolant supply and return connections with the main radiator.
